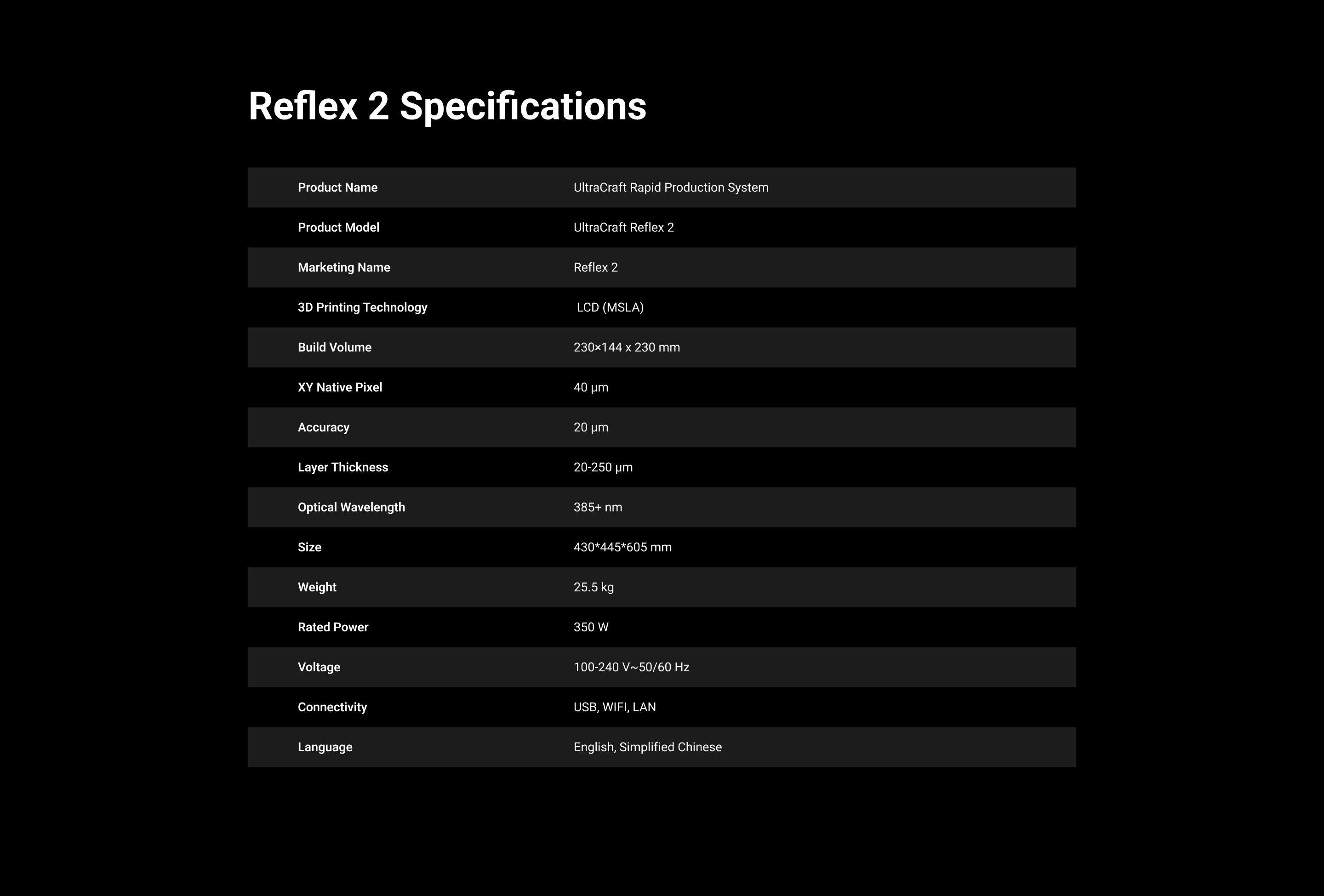

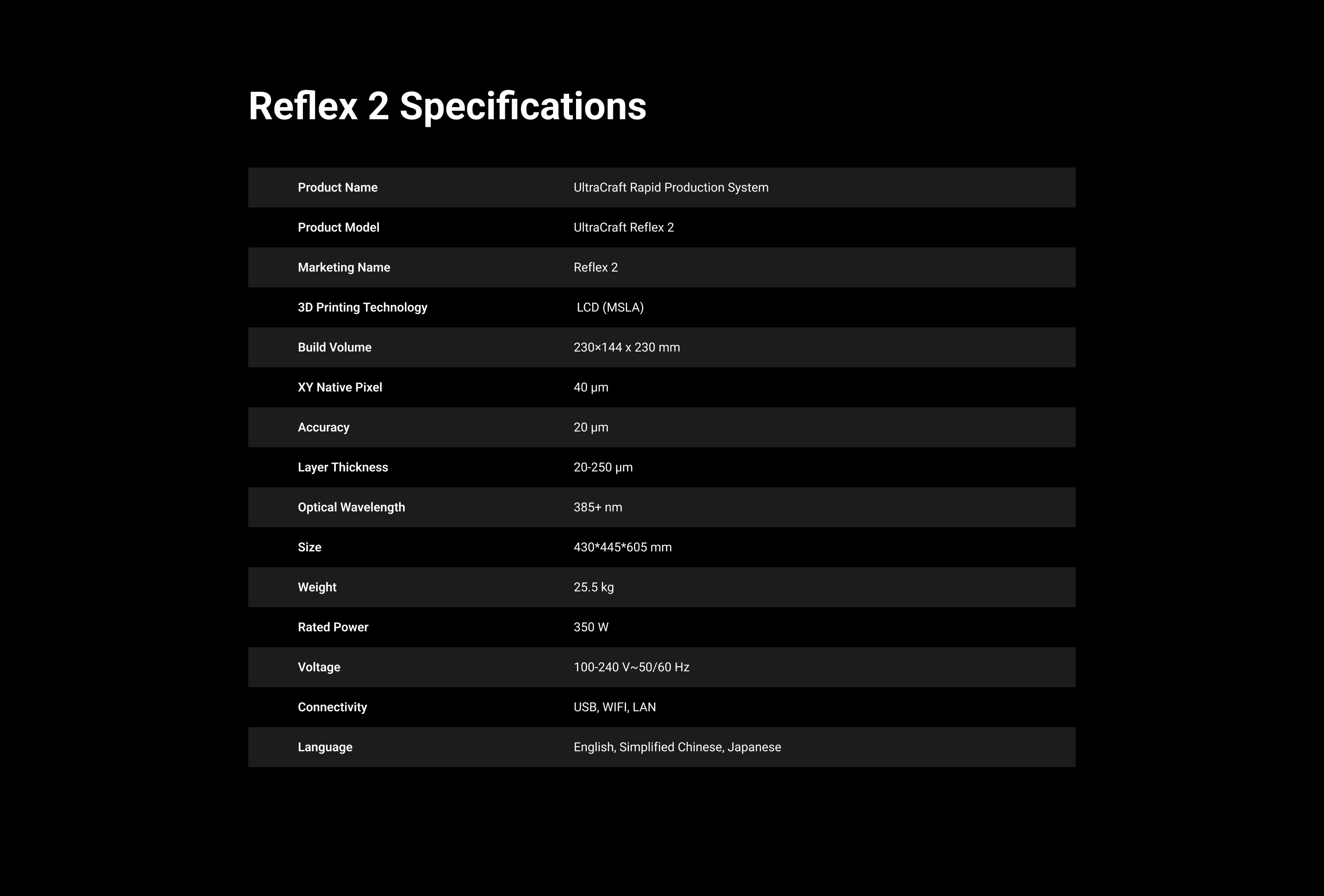

Specs
Buy Now
Get a Quote

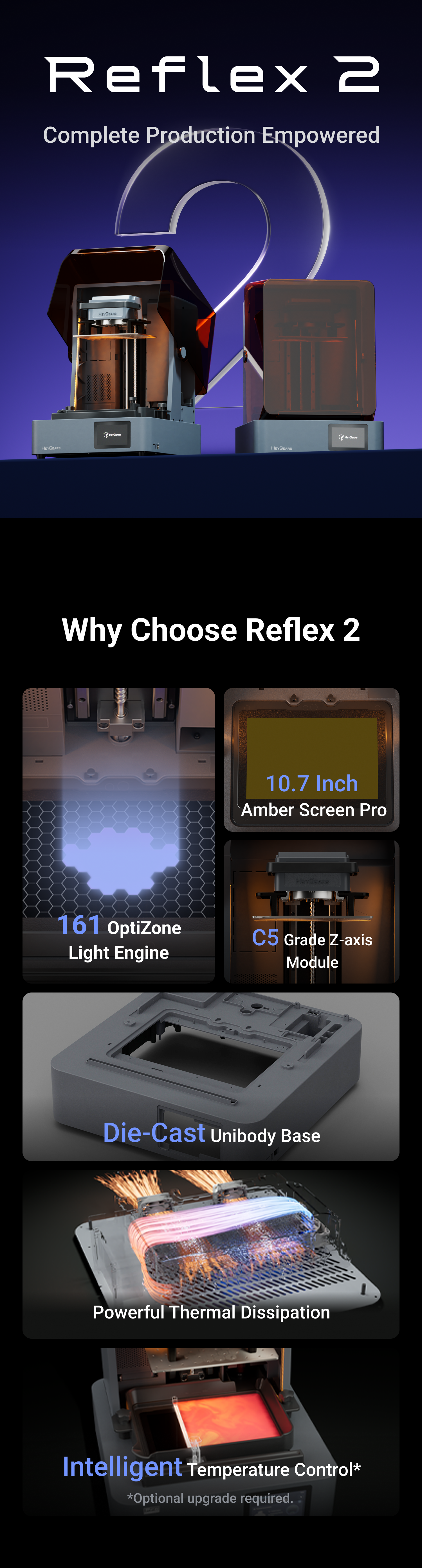

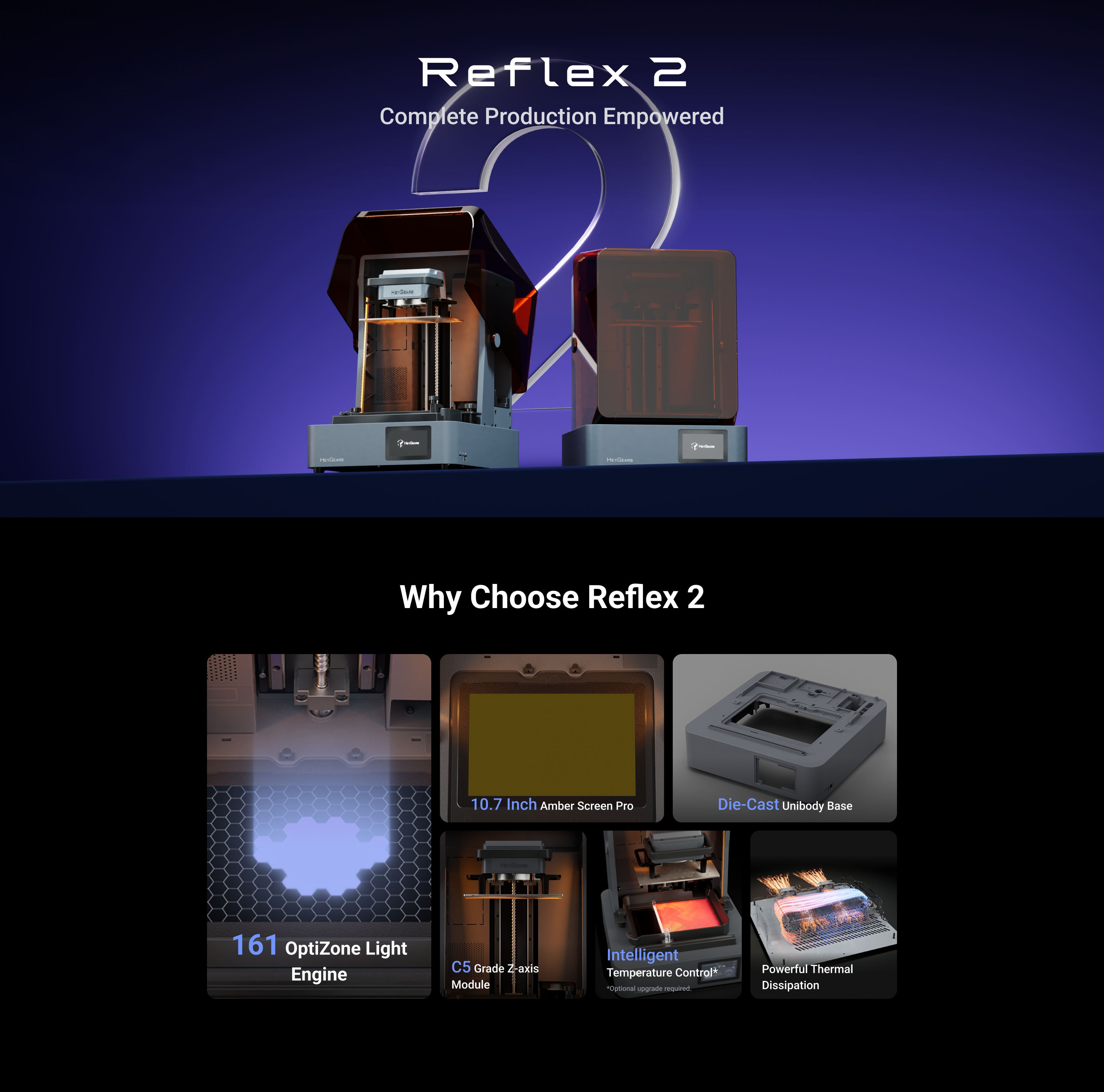

Reflex 2

Complete Production Empowered

  • 161 OptiZone Light Engine
  • 10.7 Inch Amber Screen Pro
  • C5 Grade Z-axis Module
  • Die-Cast Unibody Base
  • Intellligent Temperature Control
  • Powerful Thermal Dissipation

I. 161 OptiZone Light Engine, Pioneered by HeyGears

1. More Accurate Light Control from the Core

Reflex 2 introduces the OptiZone Light Engine with 161 mini-LEDs, each controllable for activation and brightness. With Pulse Width Modulation (PWM), the light engine delivers more uniform light to the screen.

2. Precise Light Projection for Exceptional Surface Finishes

Precise Light Projection for Exceptional Surface Finishes

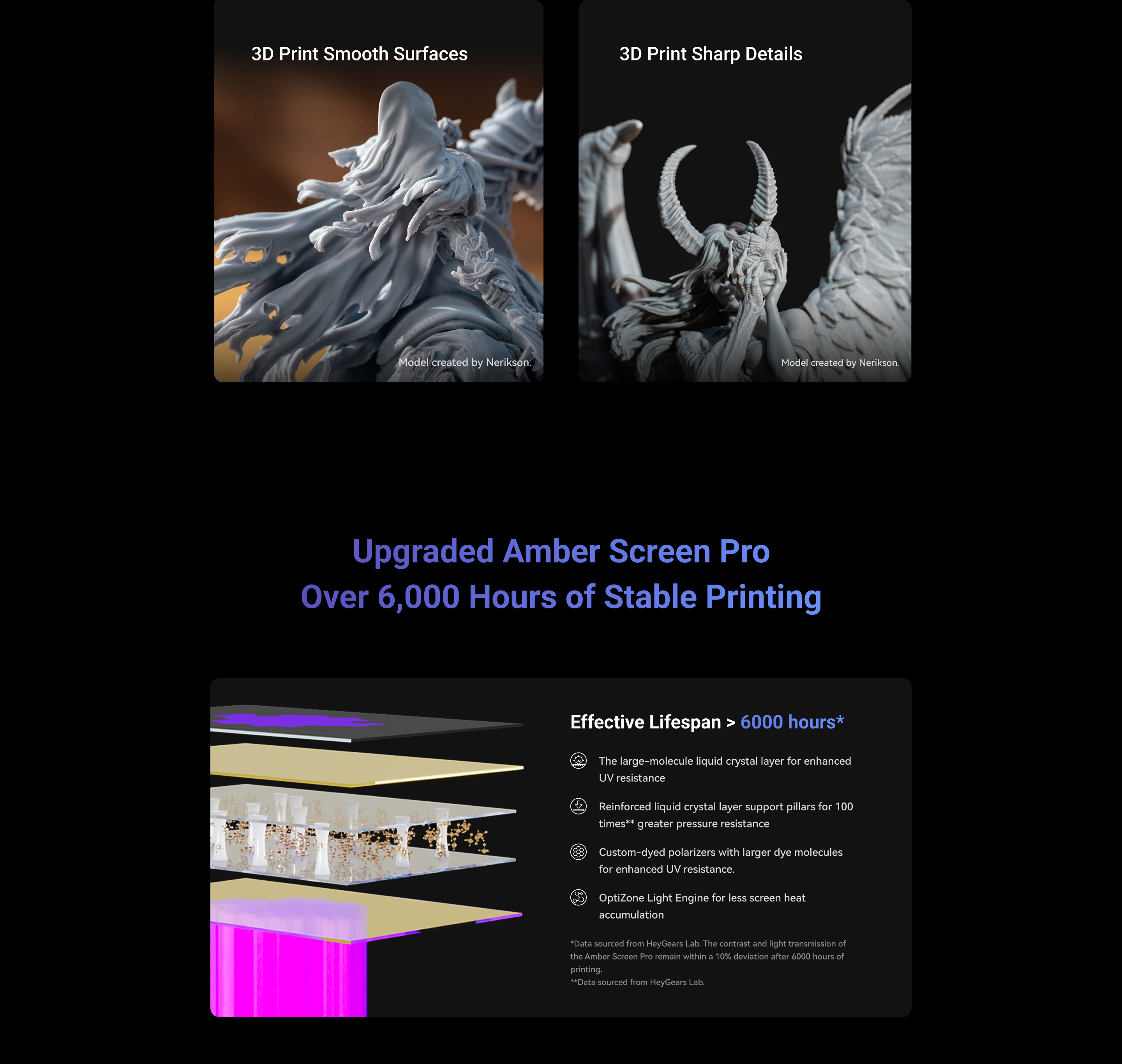

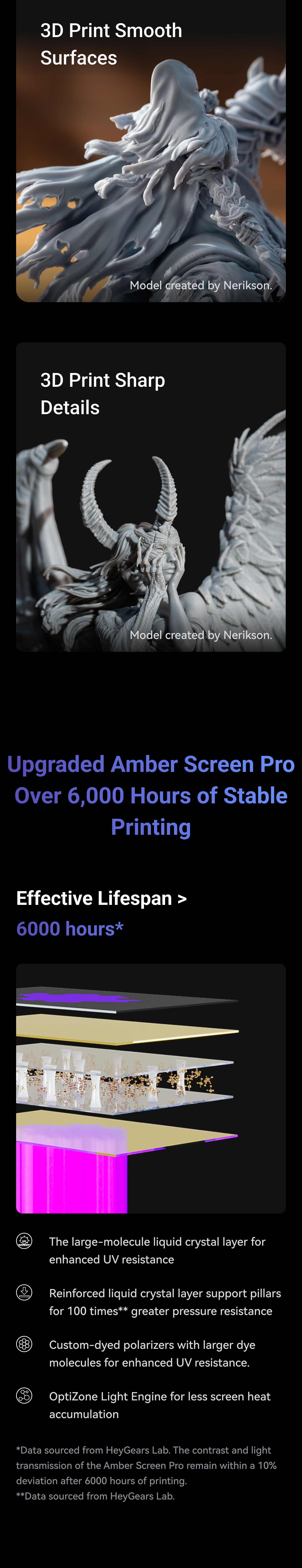

II. Upgraded Amber Screen Pro

1. Effective Lifespan > 6000 hours

- The large-molecule liquid crystal layer for enhanced UV resistance- Reinforced liquid crystal layer support pillars for 100 times* greater pressure resistance- Optizone Light Engine for less screen heat accumulation- Custom-dyed polarizers with larger dye molecules for enhanced UV resistance.

2. AI-Powered 86,000+ Zone Light Calibration for Unmatched Light Uniformity

The upgraded visual calibration algorithm, MASK, uses 86,020 calibration zones to compensate for light intensity variations in each screen zone. This method achieves ≥94% light uniformity and print accuracy of ≤0.05 mm*.

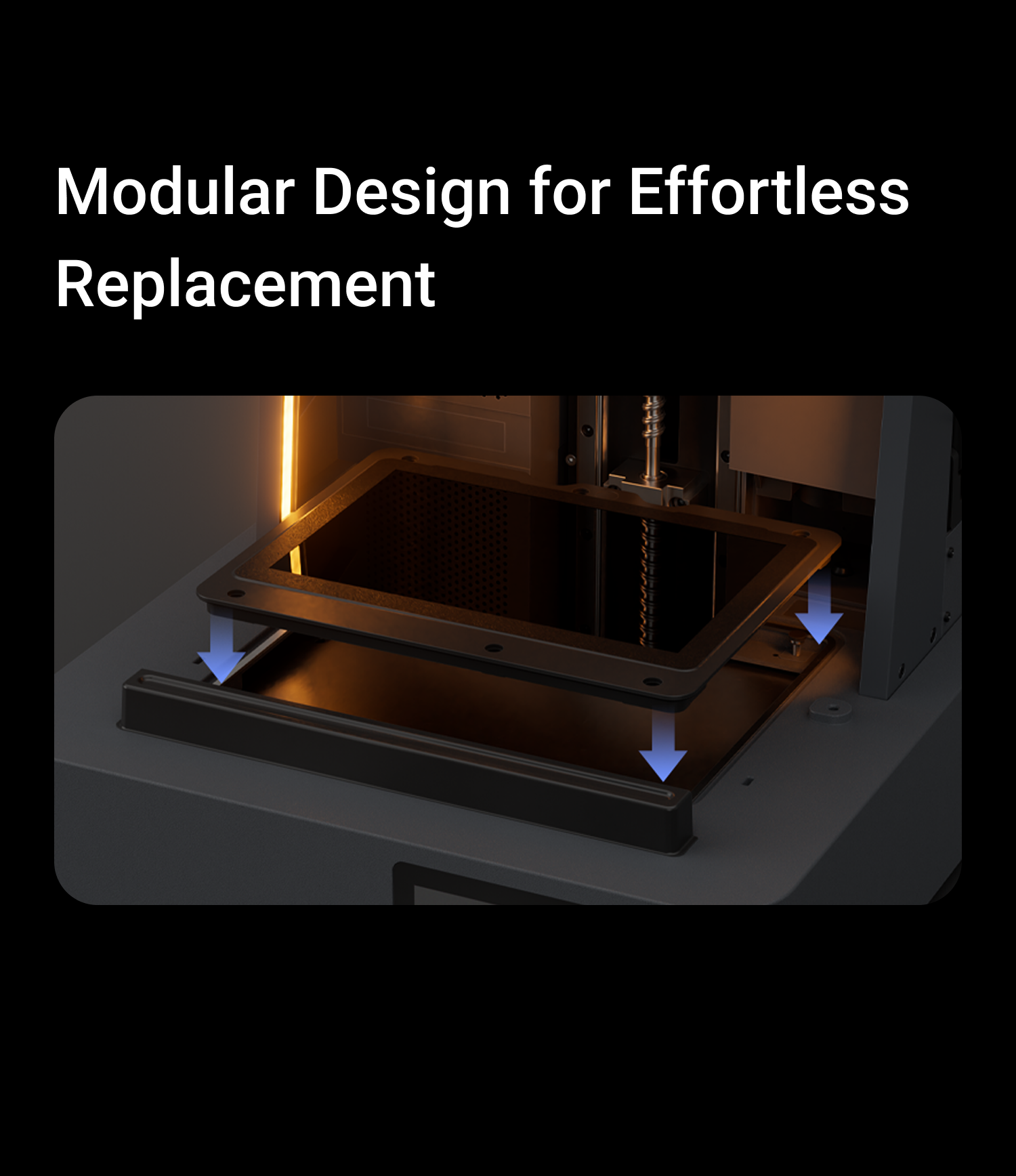

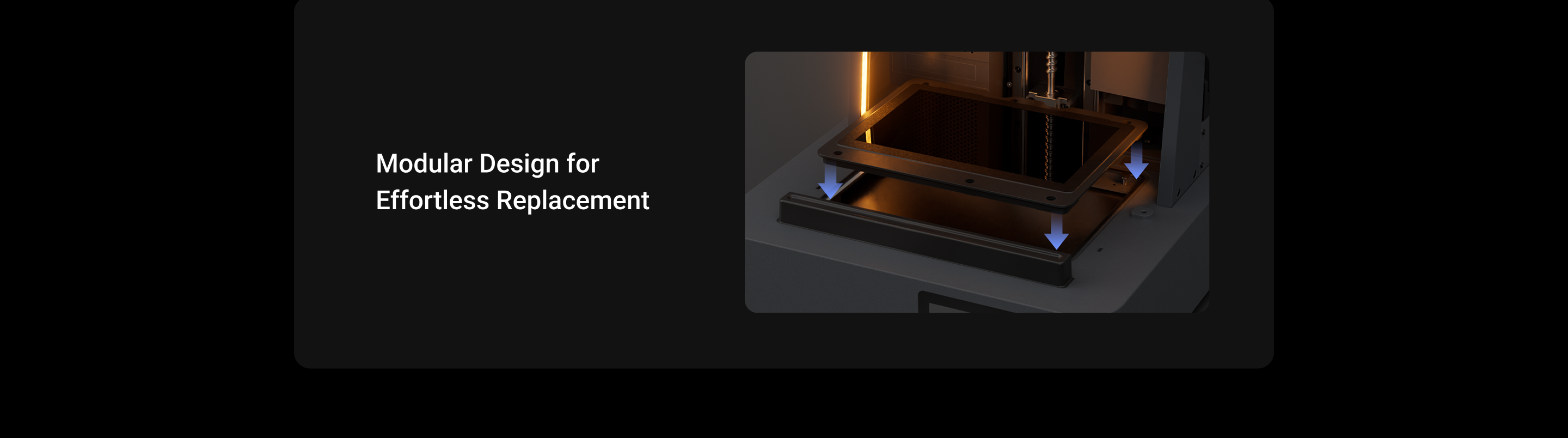

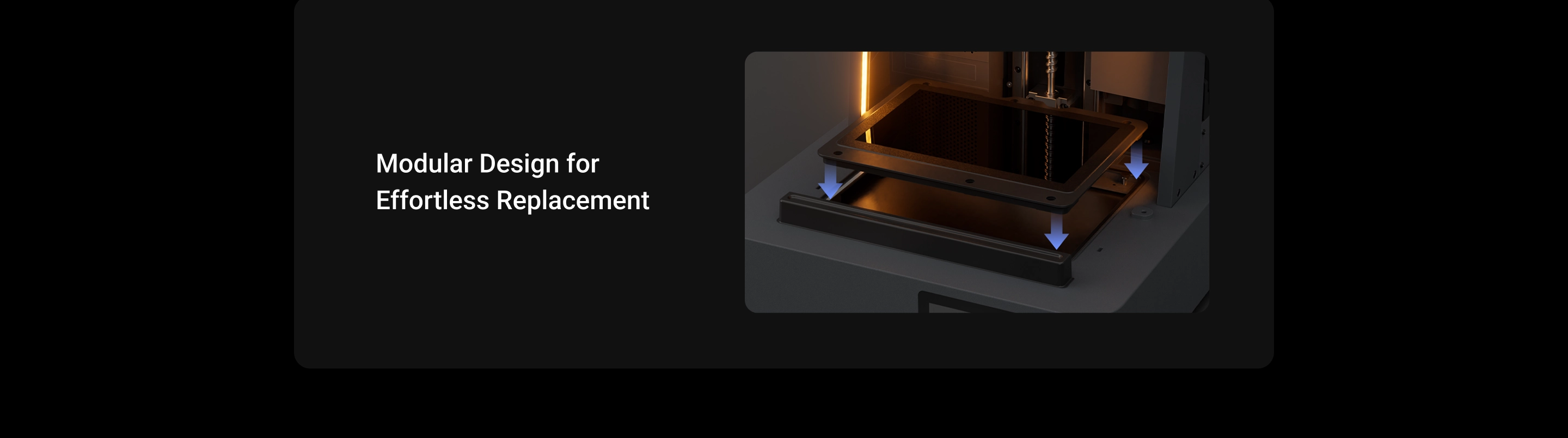

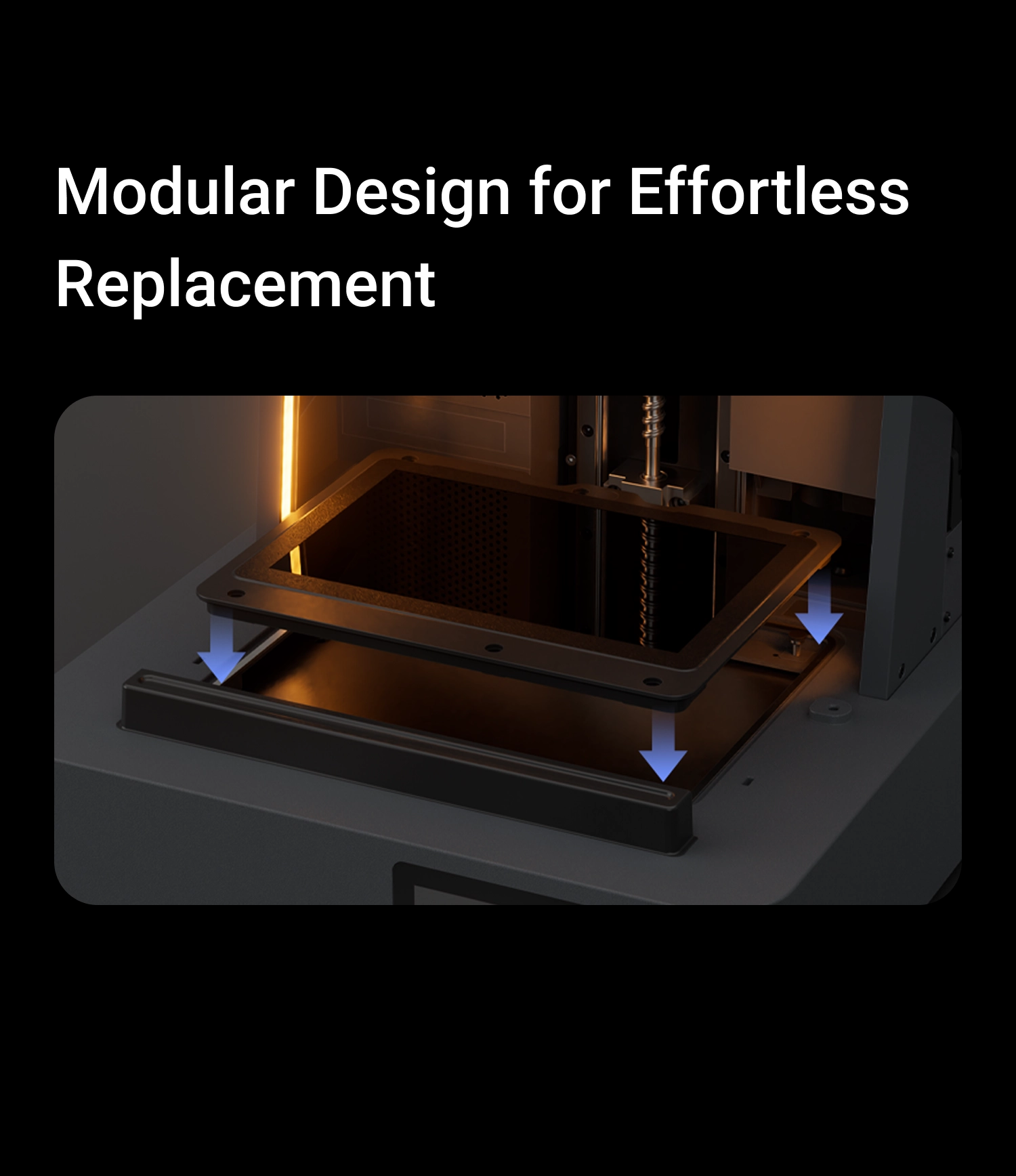

3. Modular Design for Effortless Replacement

III. Enhanced Stability in 3D Printing

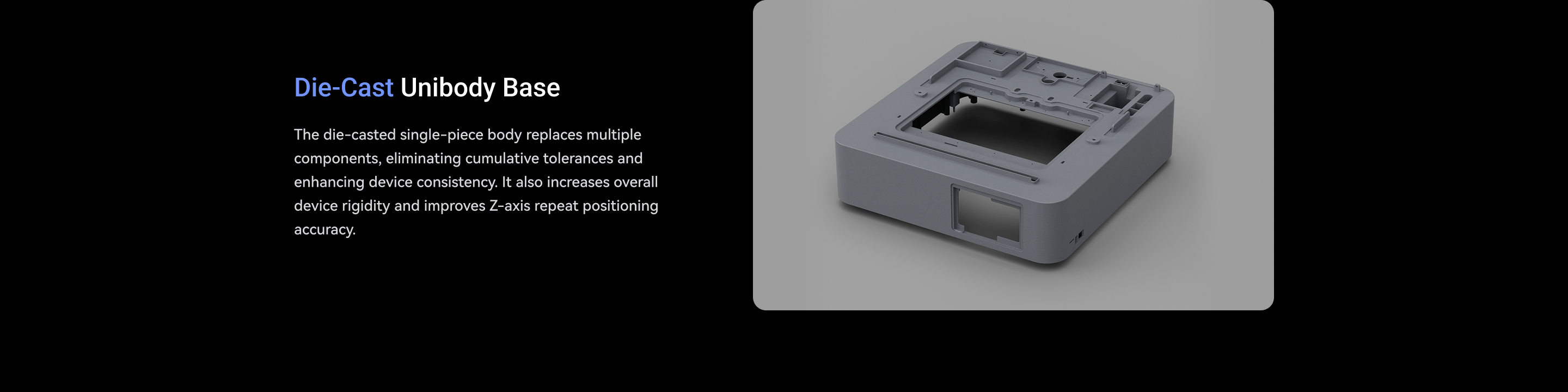

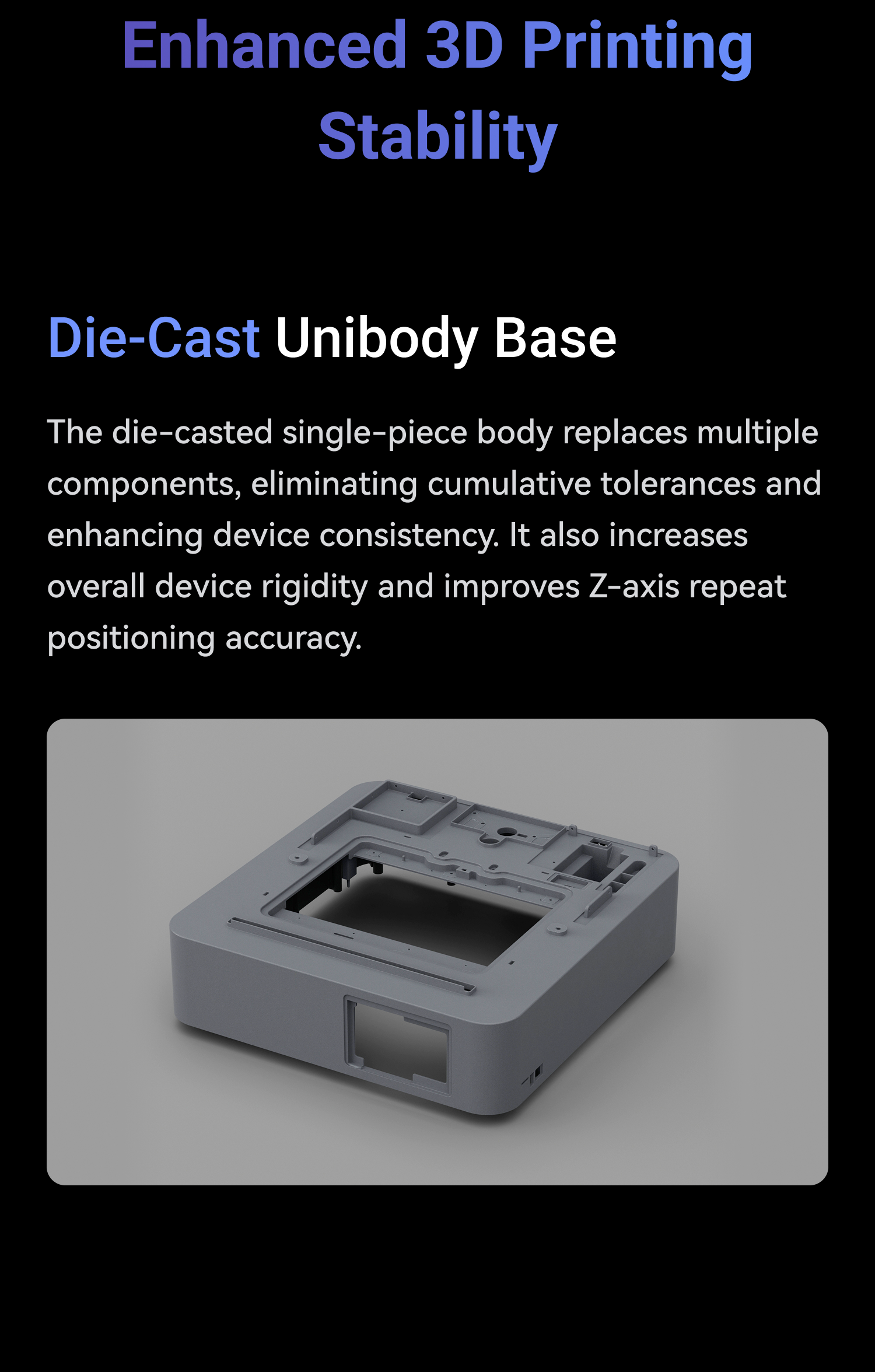

1. Die-Cast Unibody Base

The die-casted single-piece body replaces multiple components, eliminating cumulative tolerances and enhancing device consistency. It also increases overall device rigidity and improves Z-axis repeat positioning accuracy.

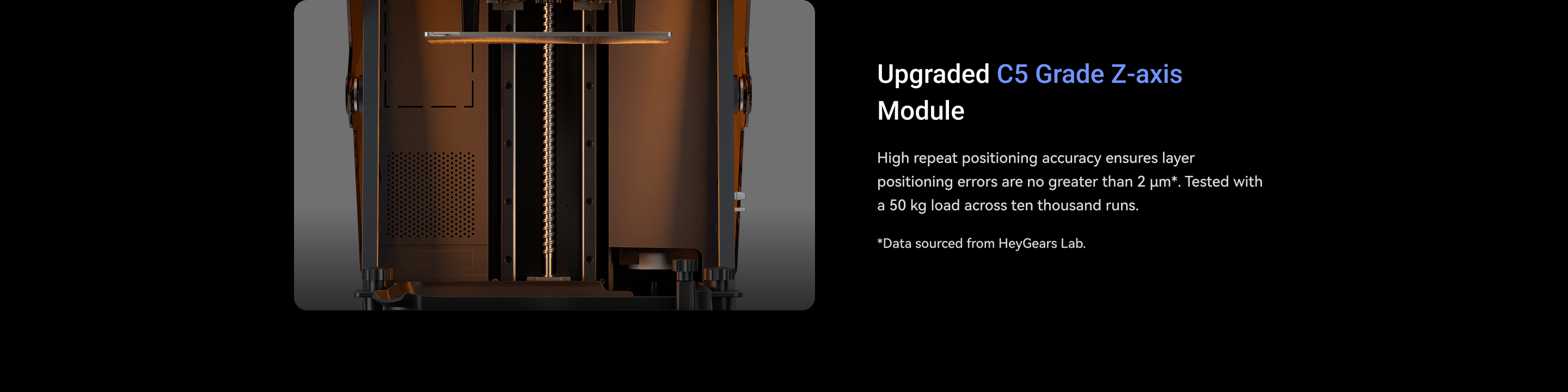

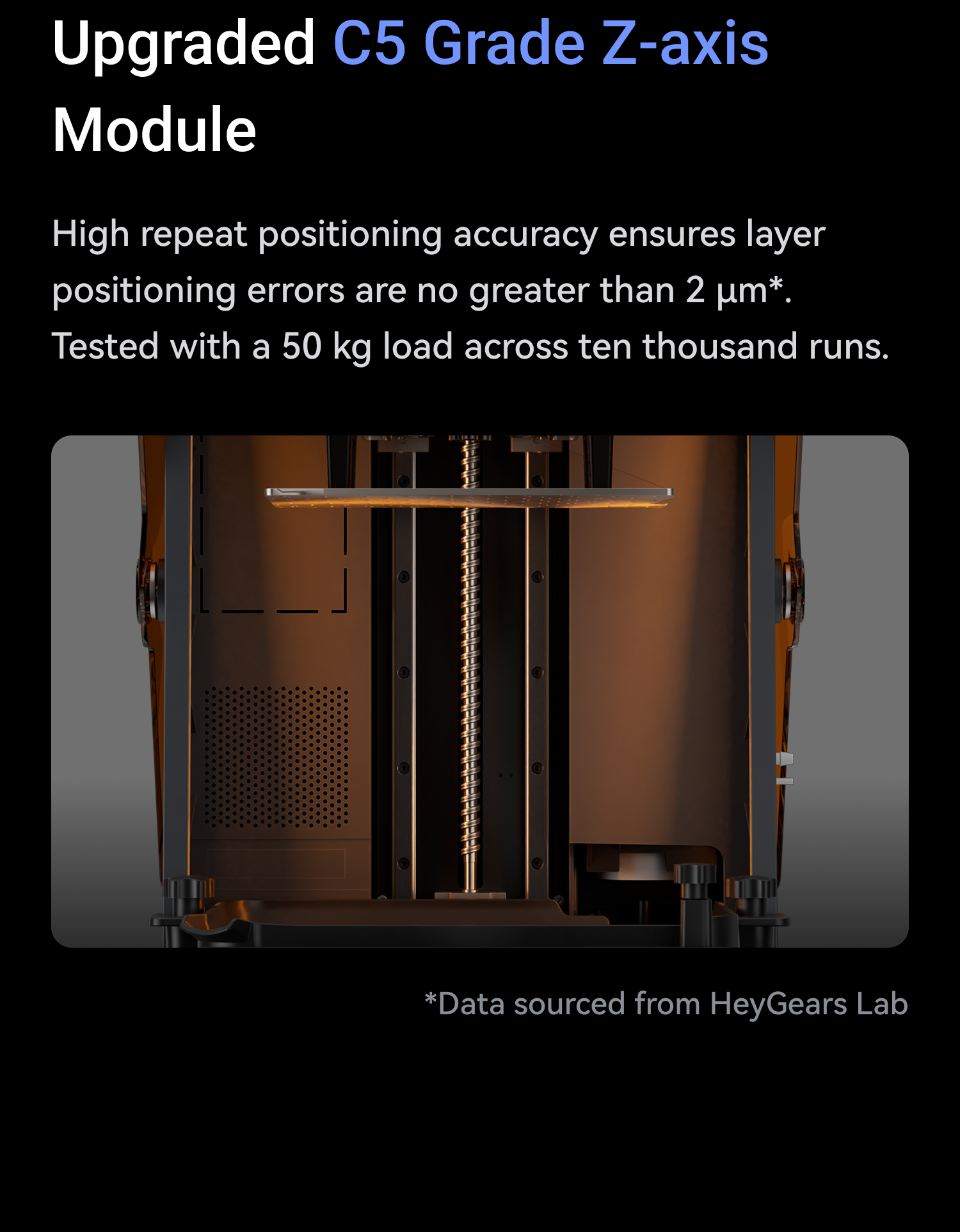

2. Upgraded C5 grade Z-axis Module

High repeat positioning accuracy ensures layer positioning errors are no greater than 2 μm*. Tested with a 50 kg load across ten thousand runs.

3. Dynamic Motion Algorithm 3.0, Enhancing Printing Speed Stably

Equipped with a high-precision spindle and force sensors, this system offers real-time force feedback at 80 Hz. Dynamic speed adjustments prevent layer misalignment and board detachment, minimizing downtime and enhancing overall printing speed.

IV. Intelligent Features for Seamless 3D Printing

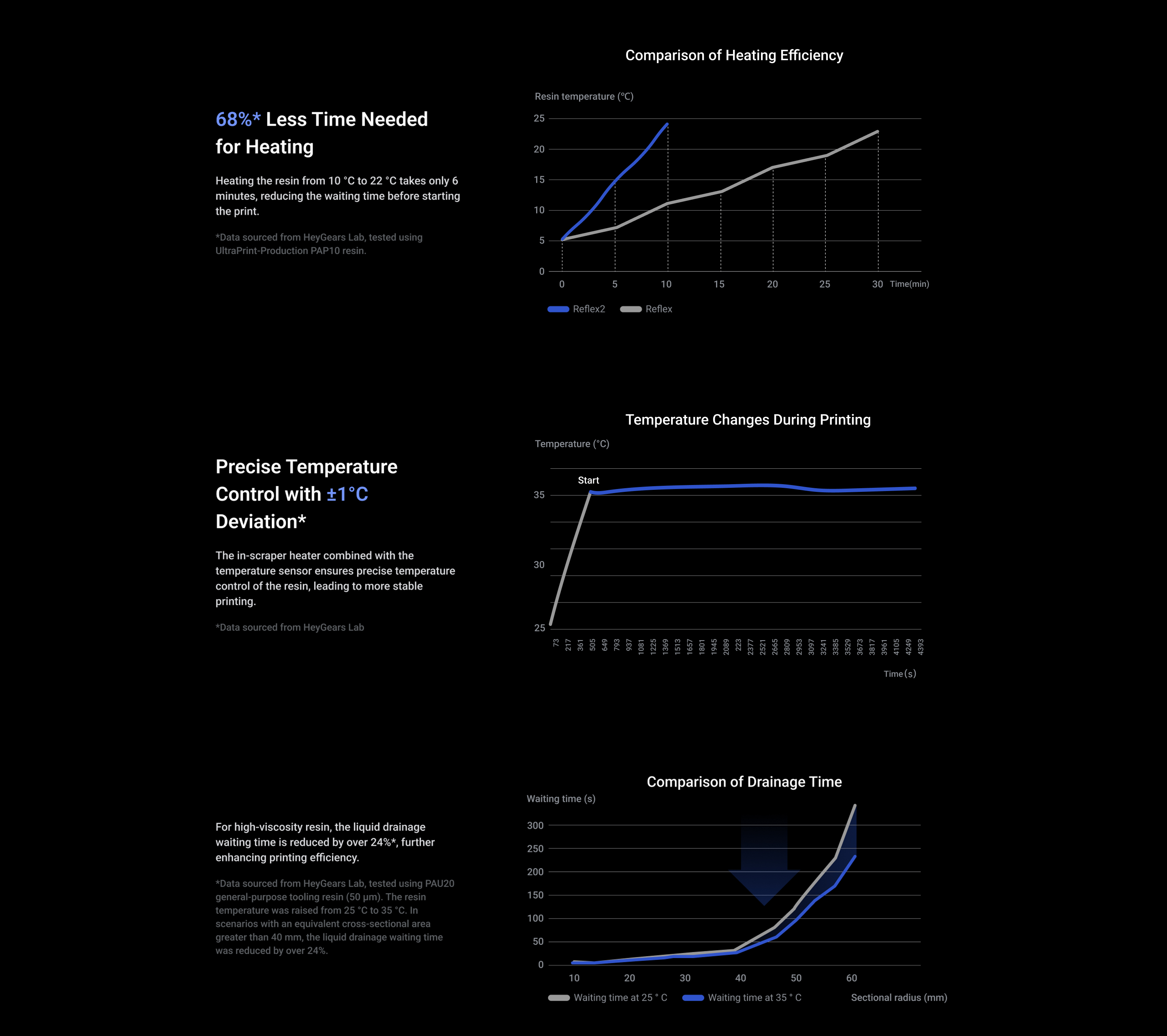

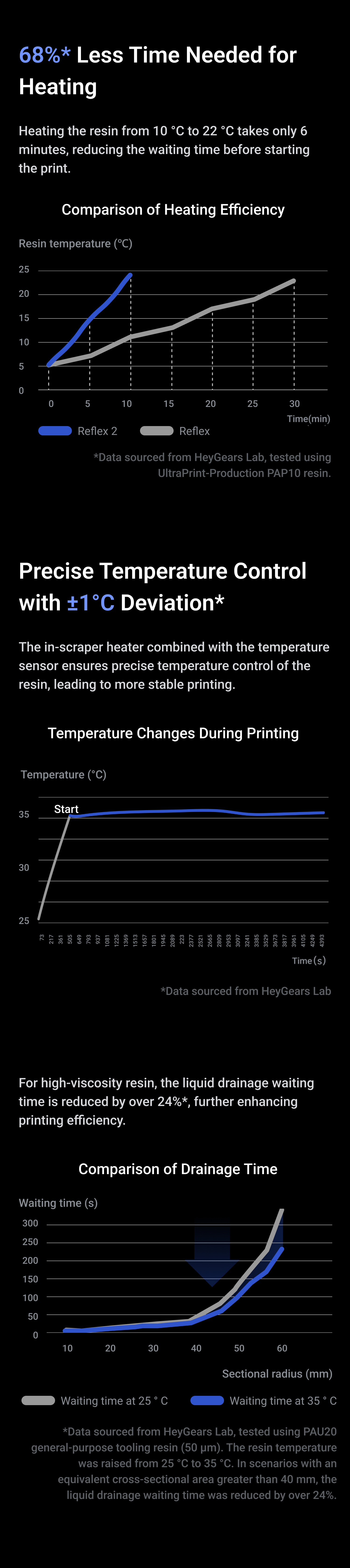

1. Intelligent Temperature Control

With the optional heating scraper, Reflex 2 achieves more efficient heating of resin and keeps it at an optimal temperature throughout the printing process. Scraping also helps to prevent resin sedimentation and residue.

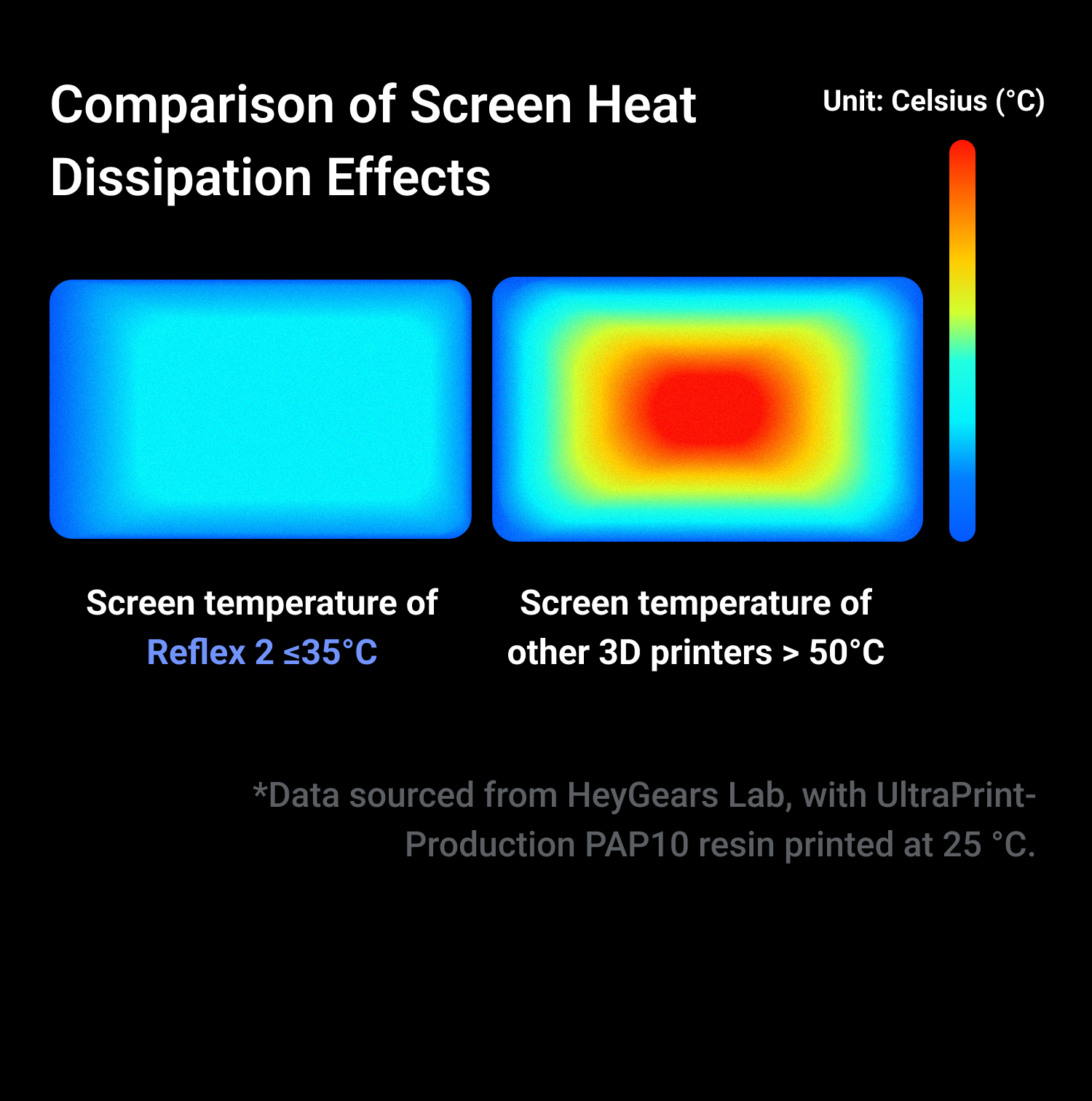

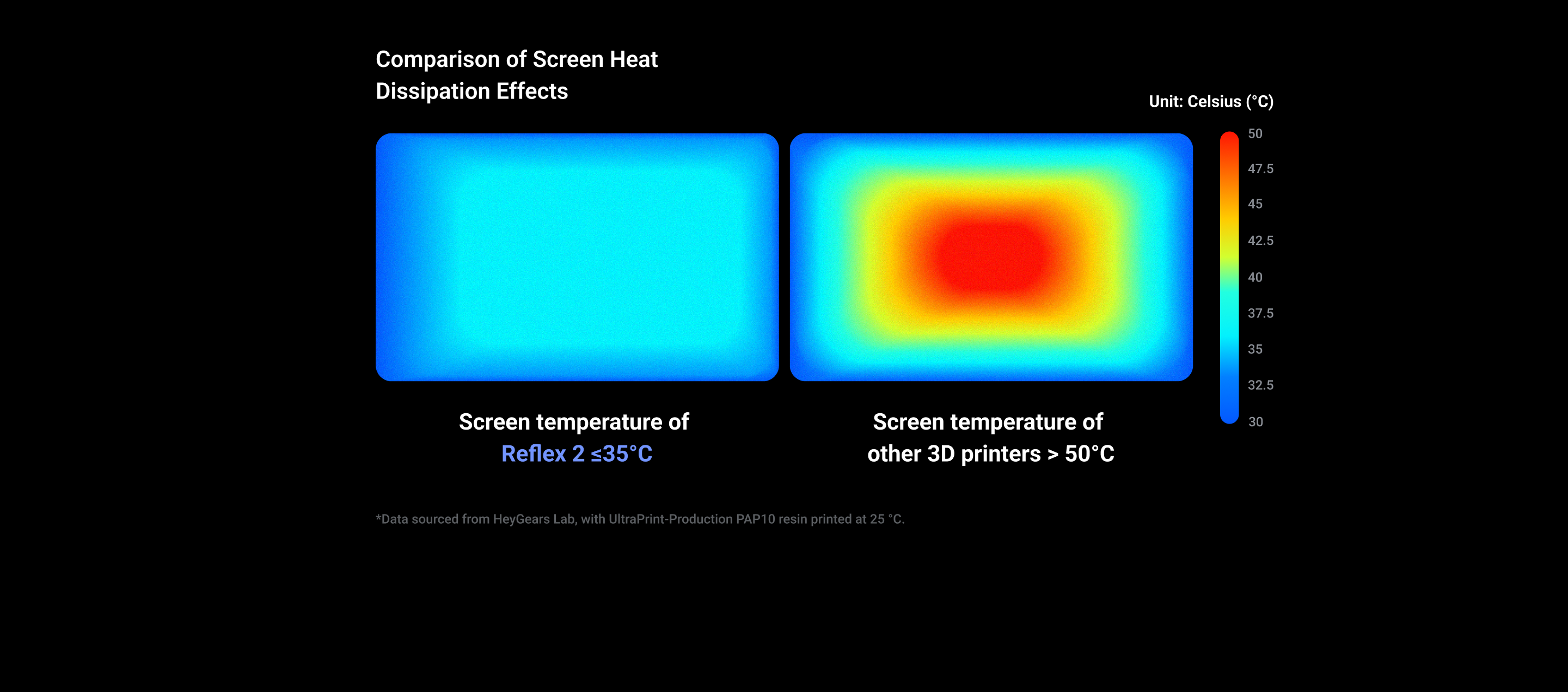

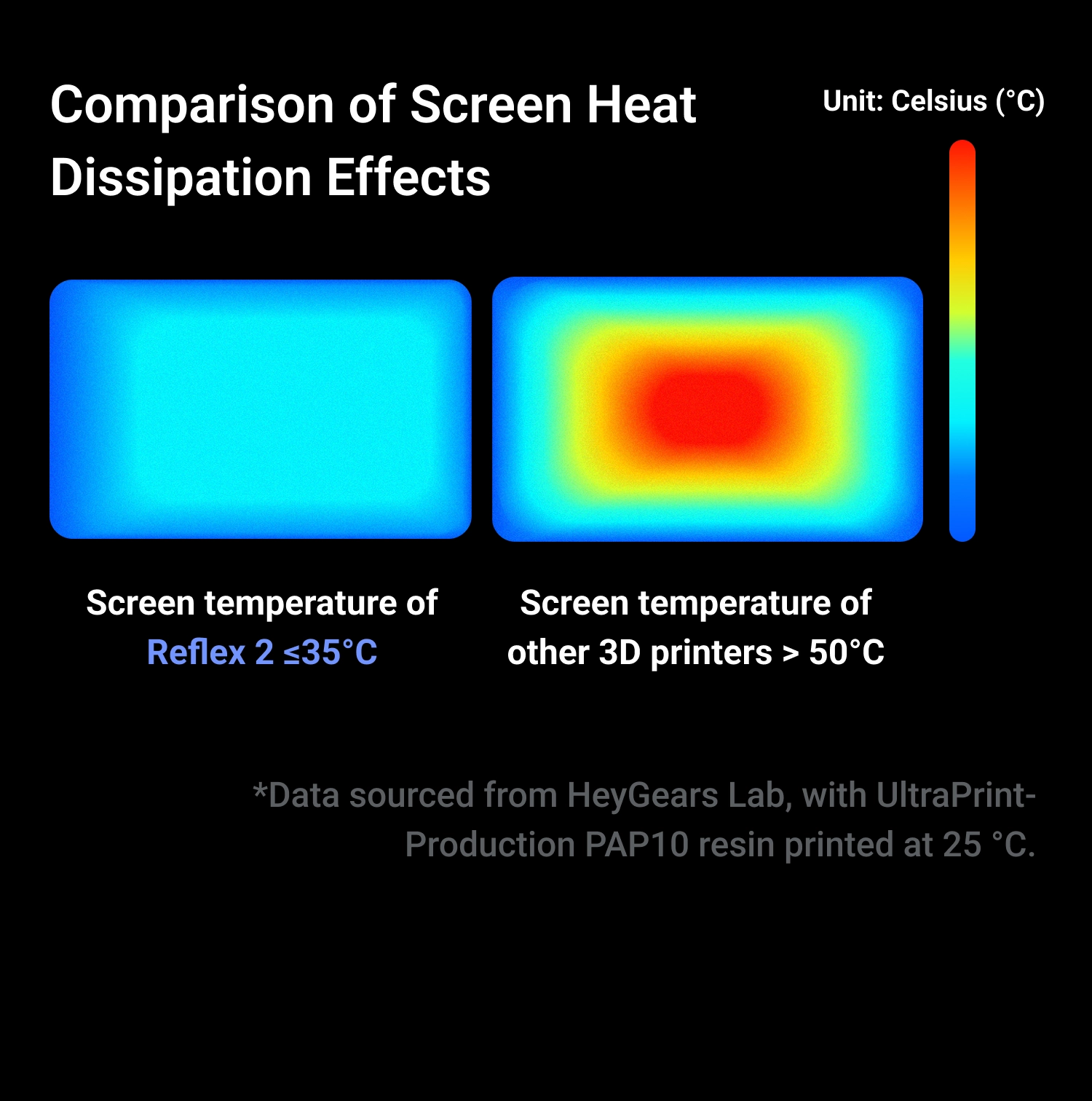

2. Powerful Thermal Dissipation

The thermal ventilation structure dissipates heat from the light source and screen, maintaining a stable temperature between 31.2 °C and 35 °C. This reduces heat buildup and extends lifespan.

3. Floating Build Platform Auto Leveling

A floating build platform system with a deviation of 0.15° eliminates gaps of up to 240 µm for automatic leveling.

4. High-sensitivity Residue Detection

Force sensors with a sensitivity of 0.01 N can detect resin residue as small as 0.15 mm and can auto-stop upon detection or print failure.

5. Automatic Resin Refill

Automatic resin refill before and during printing.

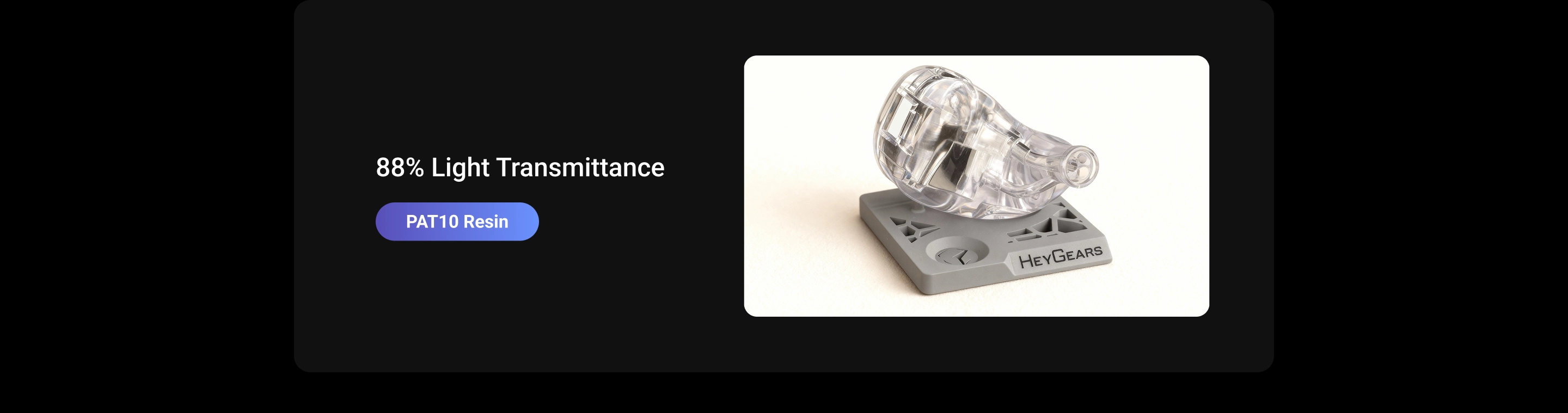

V. More Advanced Materials Available

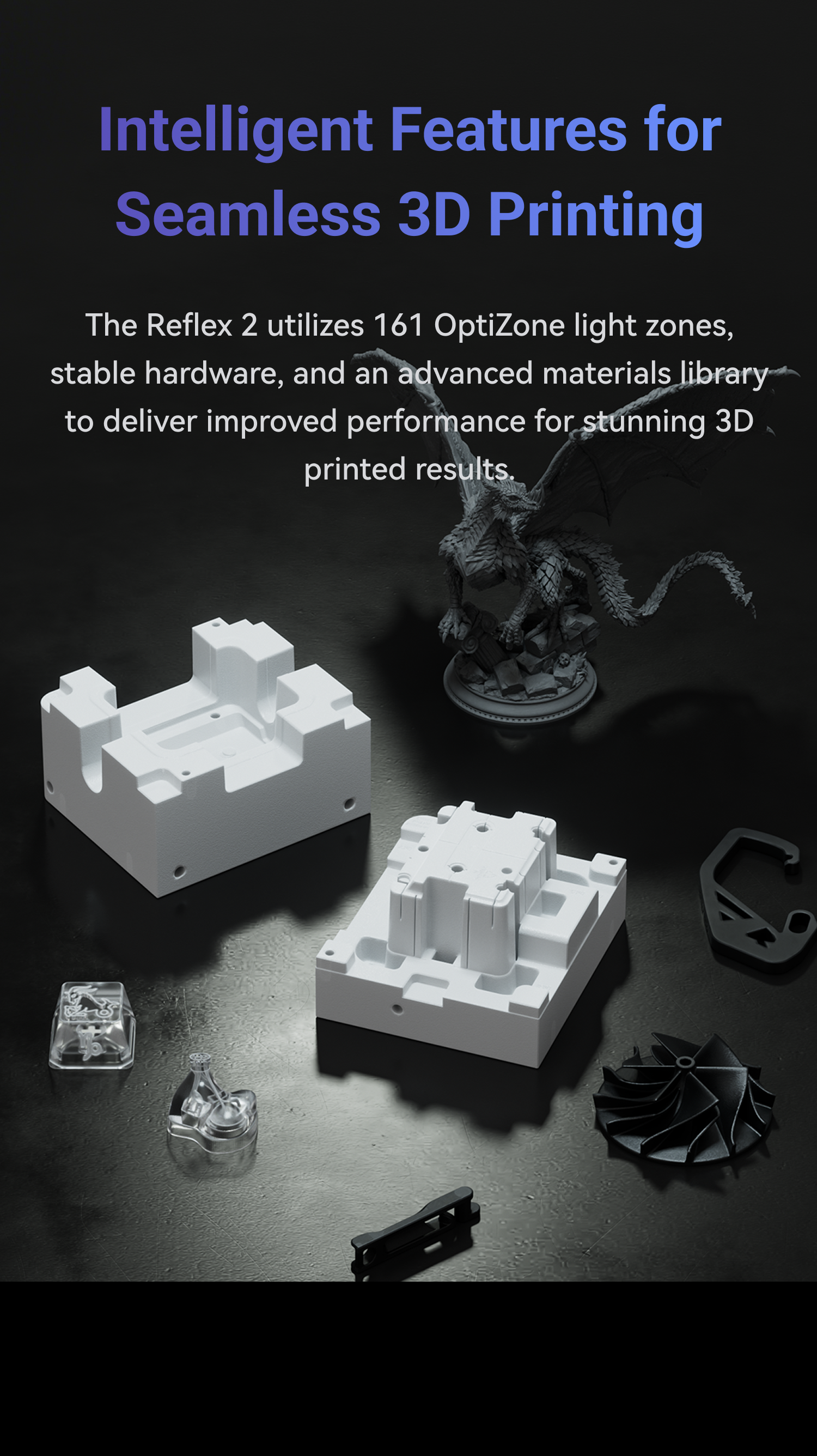

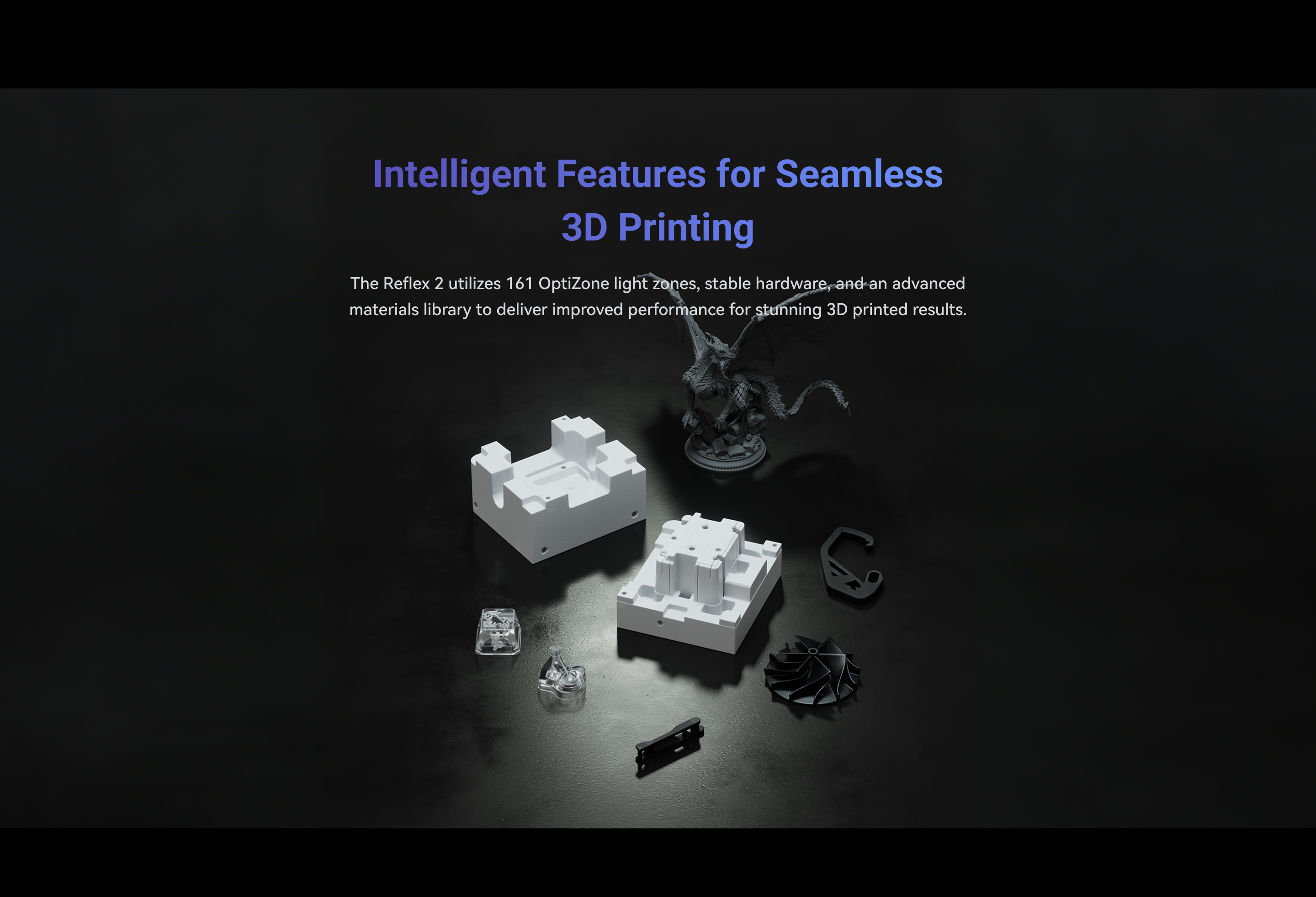

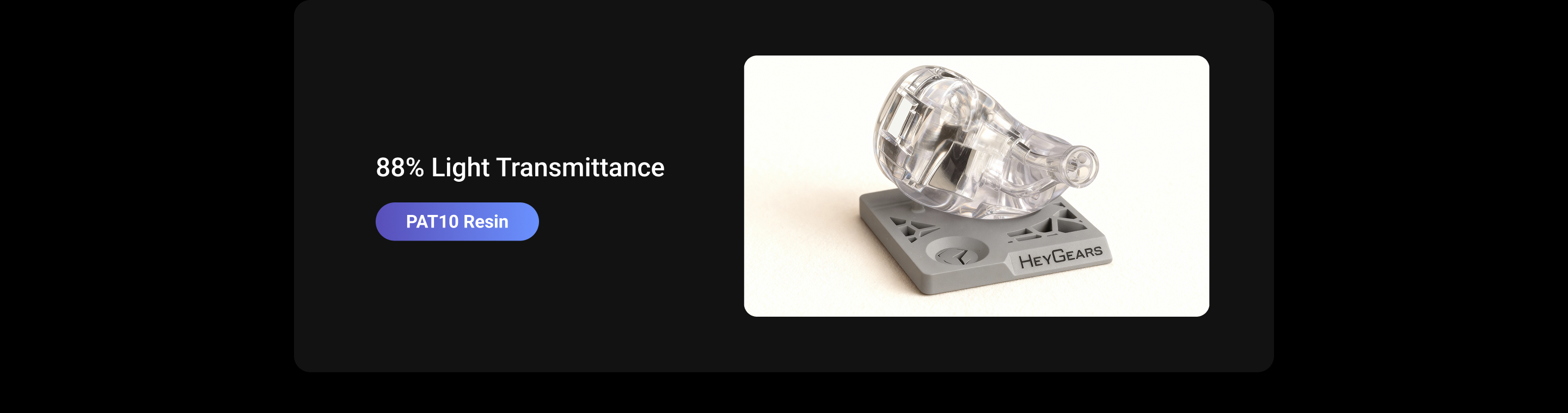

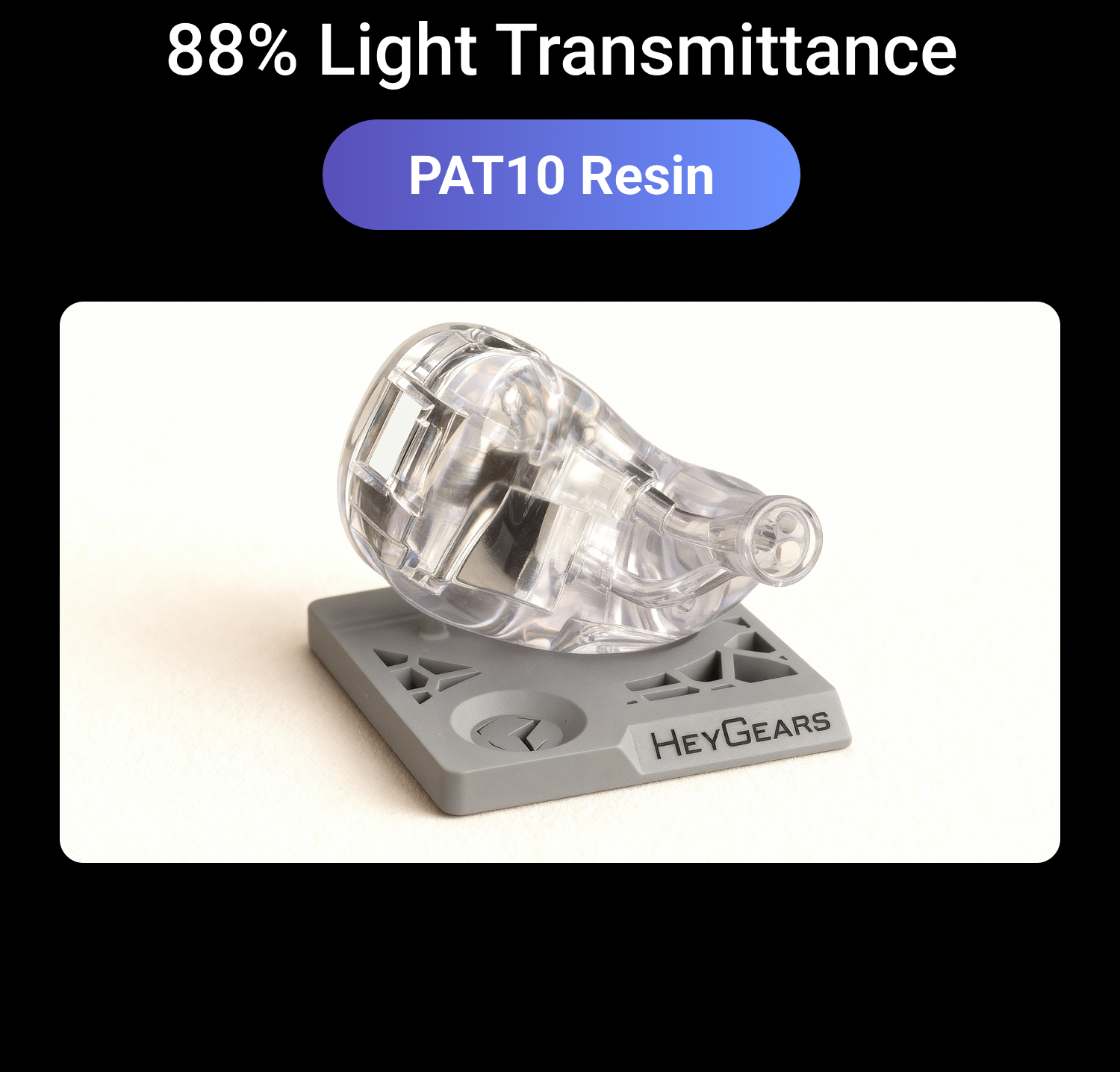

The Reflex 2, with 161 light zones and more stable hardware, enables the selection of more advanced materials and improved performance of finished prints.
