Operational Excellence for Clear Aligner Manufacturing: The HeyGears End-to-End Automated Ecosystem

10/07/26
IRVINE, Calif.

For clear aligner manufacturers, scaling production is no longer just about adding more hardware. The true bottleneck lies in the friction between digital design and physical output. Traditional workflows suffer from fragmented software, linear labor dependencies, and unpredictable data mismatches.

The HeyGears End-to-End Automated Solution transforms this fragmented process into a unified, high-throughput production line. By integrating AI-driven model preparation & pre-process, cloud-native data management, and fully automated thermoforming & trimming, we deliver predictable velocity and operational stability. This is not merely an equipment upgrade; it is a transparent ROI equation for your lab.


The Workflow Challenge: Fragmentation vs. Flow

In a traditional setup, data must be manually exported, imported, and matched across multiple platforms, leading to three critical operational risks:
  • Data Silos: Repetitive import/export cycles waste valuable working hours.
  • Human Error: Manual file matching is prone to mistakes - one smudged label can scrap an entire batch.
  • Idle Capacity: Manual dependencies make unattended overnight production impossible.
HeyGears eliminates this friction. Our strategy is simple: Make data flow automatically in the cloud, so people don't have to chase it.

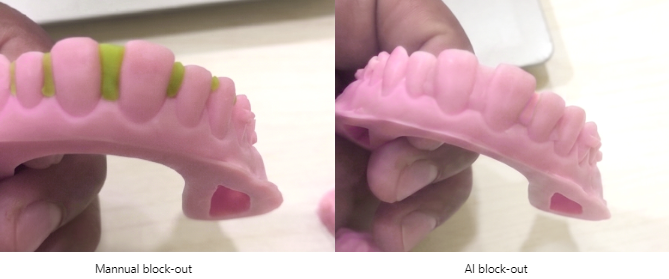

1. AI Block-Out: From 30s Manual to 5s Automated



Traditional manual blocking out (filling undercuts) is a linear, labor-intensive process taking 30 seconds per model, with quality heavily dependent on operator consistency.
HeyGears Cloud transforms this into a seamless background operation. Our deep learning-based AI Block-Out algorithm identifies and fills triangles, gingival depressions, and undercut areas with >90%* accuracy. The entire calculation happens invisibly in the cloud, averaging just 5 seconds per model. Technicians simply upload batch data and review the final results when ready, with zero active waiting time or operator fatigue - significantly streamlining the workflow and boosting overall productivity.





2. One-Stop Cloud Automation: Zero Software Switching



We integrate gingiva detection, fixture adding, hollowing, slicing, and PTS toolpath generation into HeyGears Cloud.
  • Automated Gingiva Detection: Achieves >90%* first-time accuracy; a single adjustment instantly propagates to the following 5-6 steps, removing the burden of individual modifications.
  • Smart Fixture Design: Automatically positions trimming fixtures and embeds marking areas for OCR.
  • One-Click Batch Processing: From hollowing to final PTS file generation, everything runs without switching software or manual export/import.



3. 24-Hour Unattended Printing: Maximizing Asset Utilization

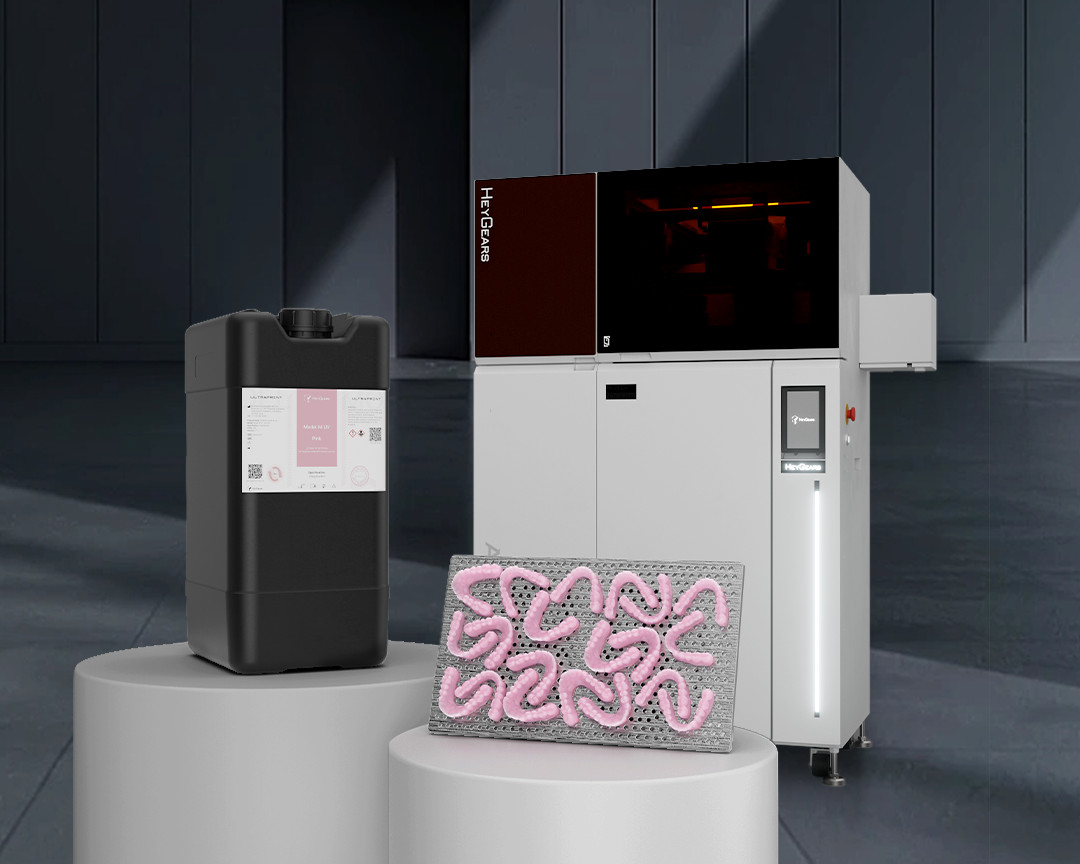

Idle equipment is a sunk cost. To eliminate this inefficiency, data flows directly to our purpose-built mass production printers (A3D/A3D Ortho). Taking the A3D Ortho as a prime example, it demonstrates how we push asset utilization to its absolute limit:
  • High Output: Features a large build plate (307.2 × 172.8 mm), capable of printing 20 full-arch models per batch, with a rapid print speed of 1 min/part.
  • Continuous Production: Enables true 24-hour unattended production. A single A3D Ortho unit delivers 1,440 models per day, maximizing capacity utilization during off-hours.
  • Reliability: Equipped with a draining module (≥90% resin utilization) and paired with low-viscosity resin - Model M UV Pink 2.1. This specialized material ensures exceptional printing precision and maintains dimensional stability after thermoforming, guaranteeing consistent fit and accuracy throughout long-duration production runs.



4. All-in-One Thermoforming & Trimming: Closed-Loop Robotic Automation



This is where true automation meets industrial precision. We bridge the physical model with digital toolpaths using a closed-loop data verification system, completely eliminating manual file searching and serial number verification. The entire process - from feeding to trimming - is orchestrated by high-precision robotics and real-time cloud synchronization.
The Closed-Loop Execution:
  • Cloud Pre-Sync (Data Preparation): During pre-processing, the system generates a unique OCR digital code and the corresponding PTS toolpath for each model. These files are pre-synchronized to the local trimming machine, ensuring the data is ready and waiting before production begins.
  • Automated Feeding (Model Loading): The 6-axis robot initiates the cycle by precisely gripping the printed models from the tray and loading them into the automated thermoforming unit. This ensures consistent positioning for the forming stage.
  • Automated Thermoforming: Inside the unit, precise heat and pressure are applied to form the aligners with consistent, clinical-grade fidelity.
  • Vision Recognition & Physical Marking: Immediately after forming, the built-in vision module scans the laser-marked code in real-time. Upon reading the code, the system instantly retrieves the exact matching PTS toolpath file from the cloud based on that serial number.

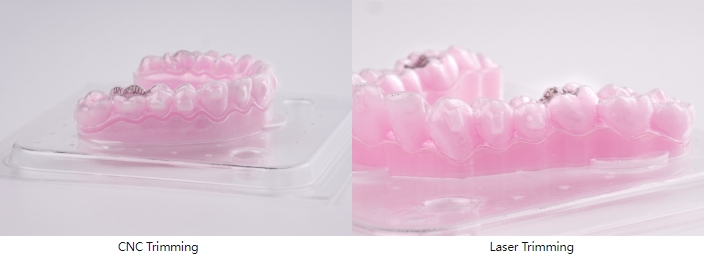

  • Automated Trimming (Laser/CNC): Guided by the retrieved data, the 6-axis robot (positioning accuracy 0.02 mm) executes precise trimming (Laser/CNC). The process concludes here with a perfectly cut aligner, completing the loop with minimal human intervention.





Scalable Solutions for Every Capacity:

To accommodate diverse production scales, we offer three configurations tailored to specific capacity needs:
  • Automatic Clear Aligner Production Line (High Volume):
A comprehensive setup including one thermoforming machine, one laser marking machine, and two automated trimming machines.
Capacity: 240 pcs/h.
  • All-In-One Automated Clear Aligner Machine (Standard):
An integrated unit combining forming and trimming in a compact footprint.
Capacity: 120 pcs/h.
  • Mini All-In-One Automated Clear Aligner Machine (Entry-Level):
Designed for smaller labs or satellite clinics requiring flexibility.
Capacity: 30 pcs/h.

                                    All-In-One Automated Clear Aligner Machine

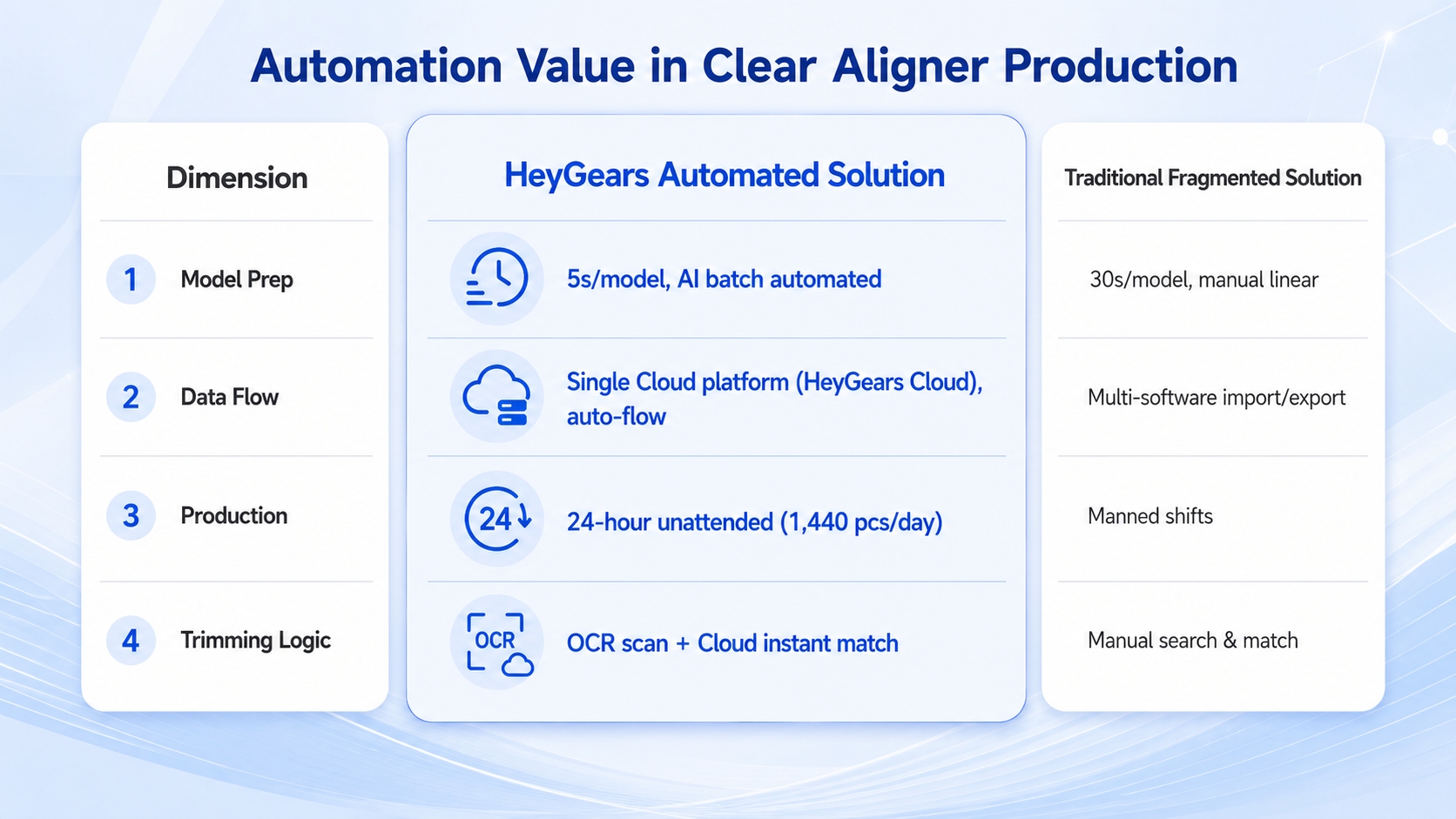

The Value of Automation

In an industry where margins are defined by efficiency, HeyGears provides the infrastructure to scale without proportional labor increases.


Ultimately, HeyGears is not just offering hardware; we are delivering a cloud-based, end-to-end automated production ecosystem for the demands of modern orthodontics. By transforming fragmented manual workflows into a unified, data-driven ecosystem, we guarantee clinical precision at scale.

Ready to eliminate operational friction and scale with confidence?
If you are struggling with fragmented software and escalating labor costs, this is the automation upgrade that delivers a clear, calculable ROI across every component of your production line.
Take the first step towards a more efficient future. Contact us at sales@heygears.com to schedule a personalized workflow assessment.

*Data from HeyGears Lab, results may vary under different environments and equipment, final results are subject to actual testing
