1. Optimized Amber Screen,
High Contrast Ratio of 566:1
- STOREGlobal/English
Global/English

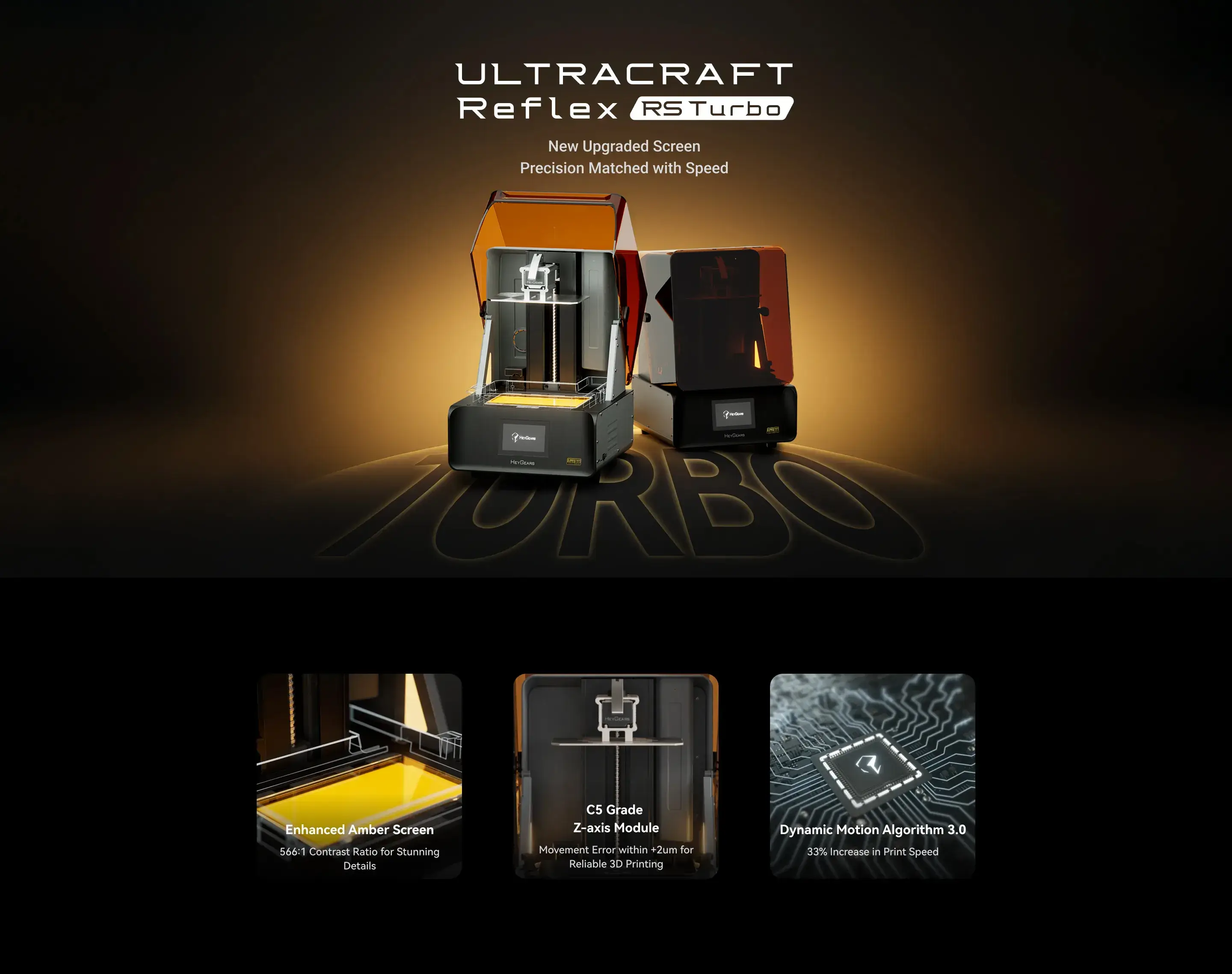

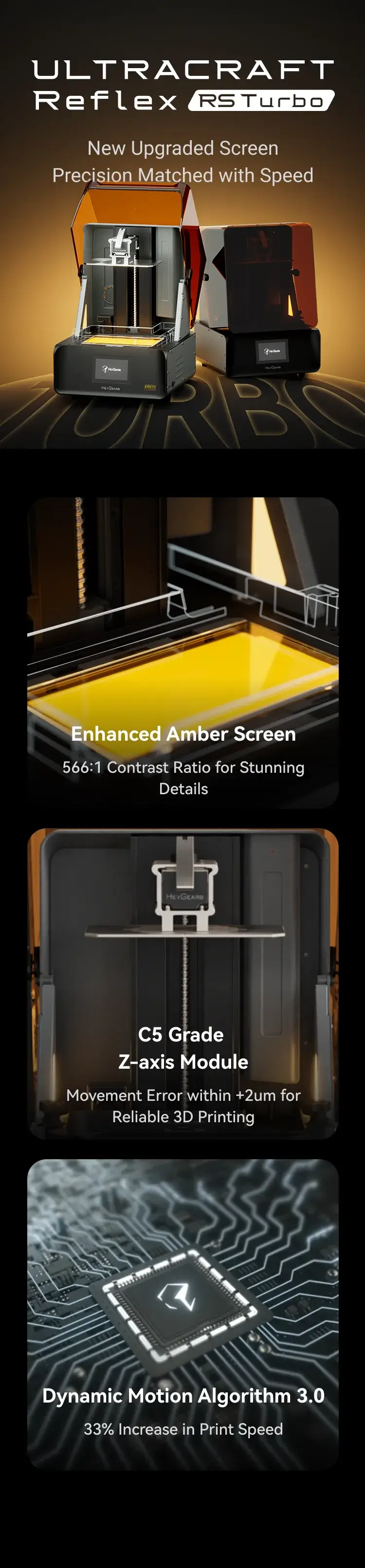

UltraCraft Reflex RS Turbo
Precision Matched with Speed
- Enhanced Amber Screen
- C5 Grade Z-axis Module
- Dynamic Motion Algorithm 3.0
I. Upgraded Screen, Excellent Printing Accuracy and Reliability
2. Precise Prints with Sharper Details
The dyed polarizer film layer utilizes dye macromolecules, allowing for better control of light transmittance. This reduces overexposure or underexposure, ensuring sharp details for 3D prints.
3. Smooth & Defect-Free Surfaces
The Amber Screen features an optical film layer engineered to transmit light at 90° optimal angles, reducing stray light reaching the curing layer and ensuring residue-free surface smoothness.
II. Over 1 Million Layers 3D Printing Capability
The dyed polarizer film employs dye macromolecules with excellent UV resistance and heat stability. This minimizes degradation, leading to reduced contrast decay and improved light projection reliability, ultimately extending the screen's lifespan.

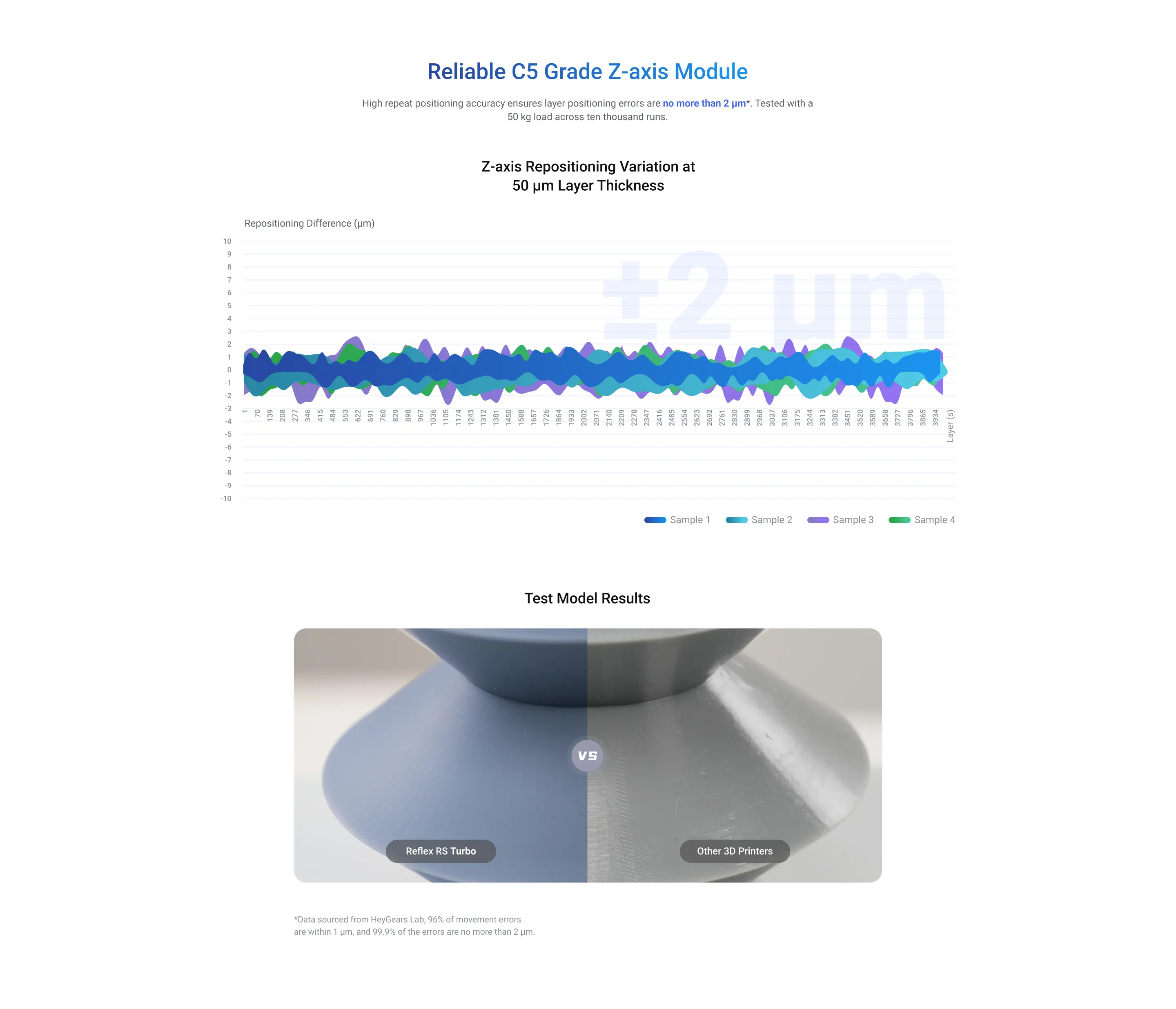

III. Reliable C5 Grade Z-axis Module
High repeat positioning accuracy ensures layer positioning errors are no more than 2 μm*. Tested with a 50 kg load across ten thousand runs.
IV. Full-Field Precision Screen
To achieve printing high accuracy and reliability, we partition the screen into 60 zones and calibrate it with a full-screen tool, ensuring light intensity variation remains within ±3%* for a printing tolerance of ≤0.05 mm.
The RS automatically calibrates the screen using NFC data, keeping light intensity differences within 5%* and reducing variations in light intensity to ensure printing precision after screen replacement.

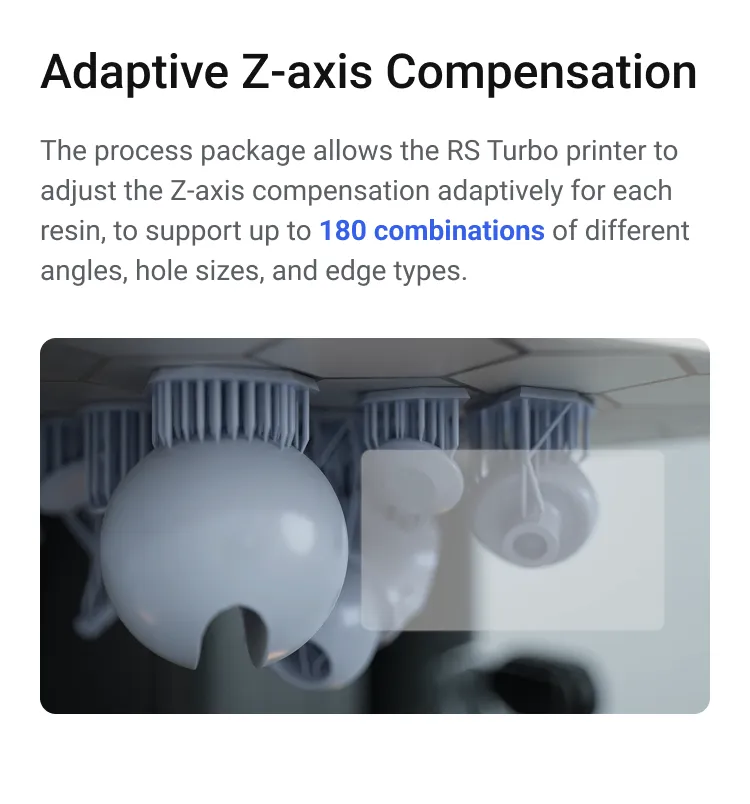

V. Adaptive Z-axis Compensation
The process package allows the RS printer to adjust the Z-axis compensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes, and edge types.
This approach minimizes deformation and resin buildup on support surfaces, and reduces post-processing time compared to using just a single z-axis compensation parameter.
VI. Injection-molded Precision with 2 Hour Speed*

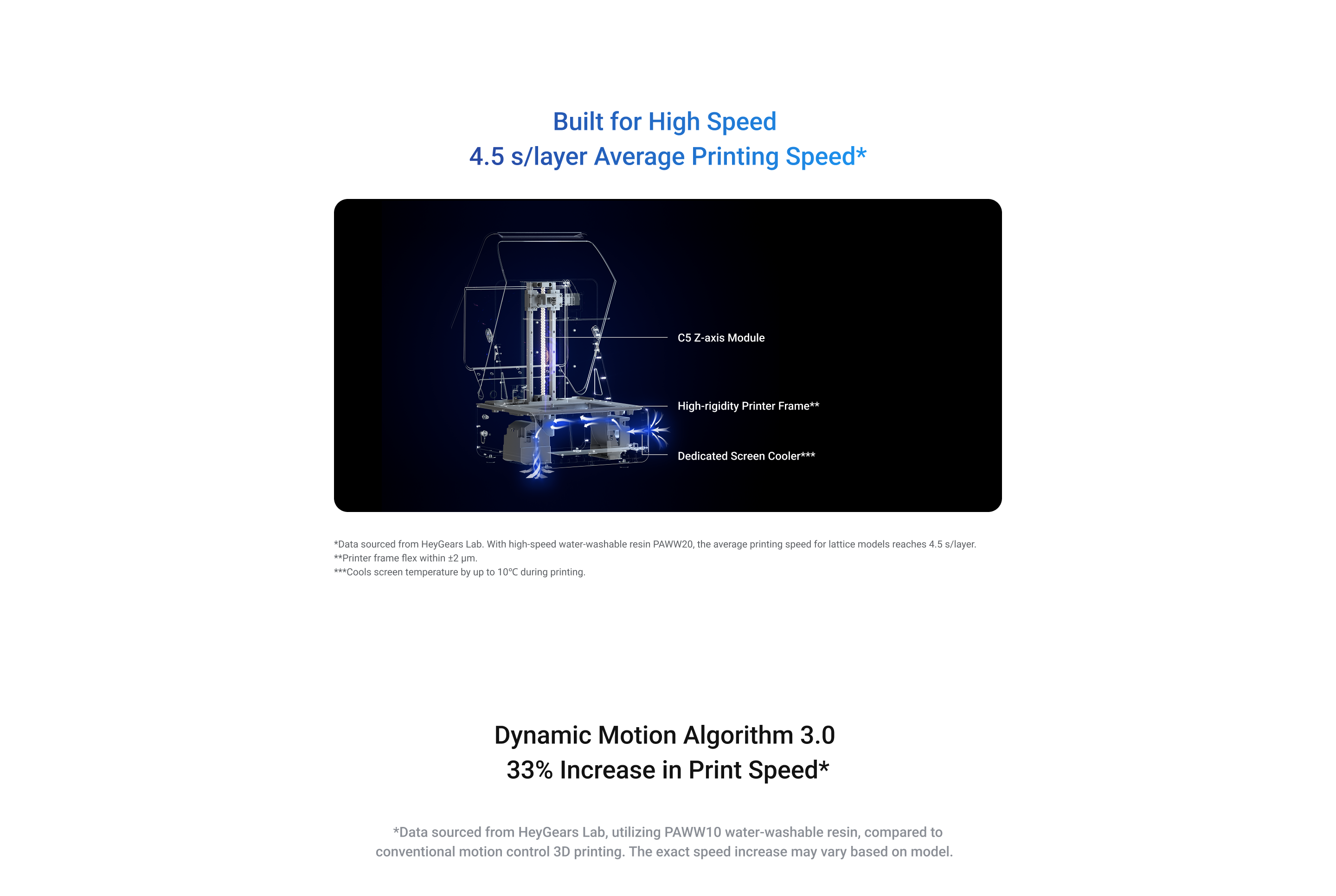

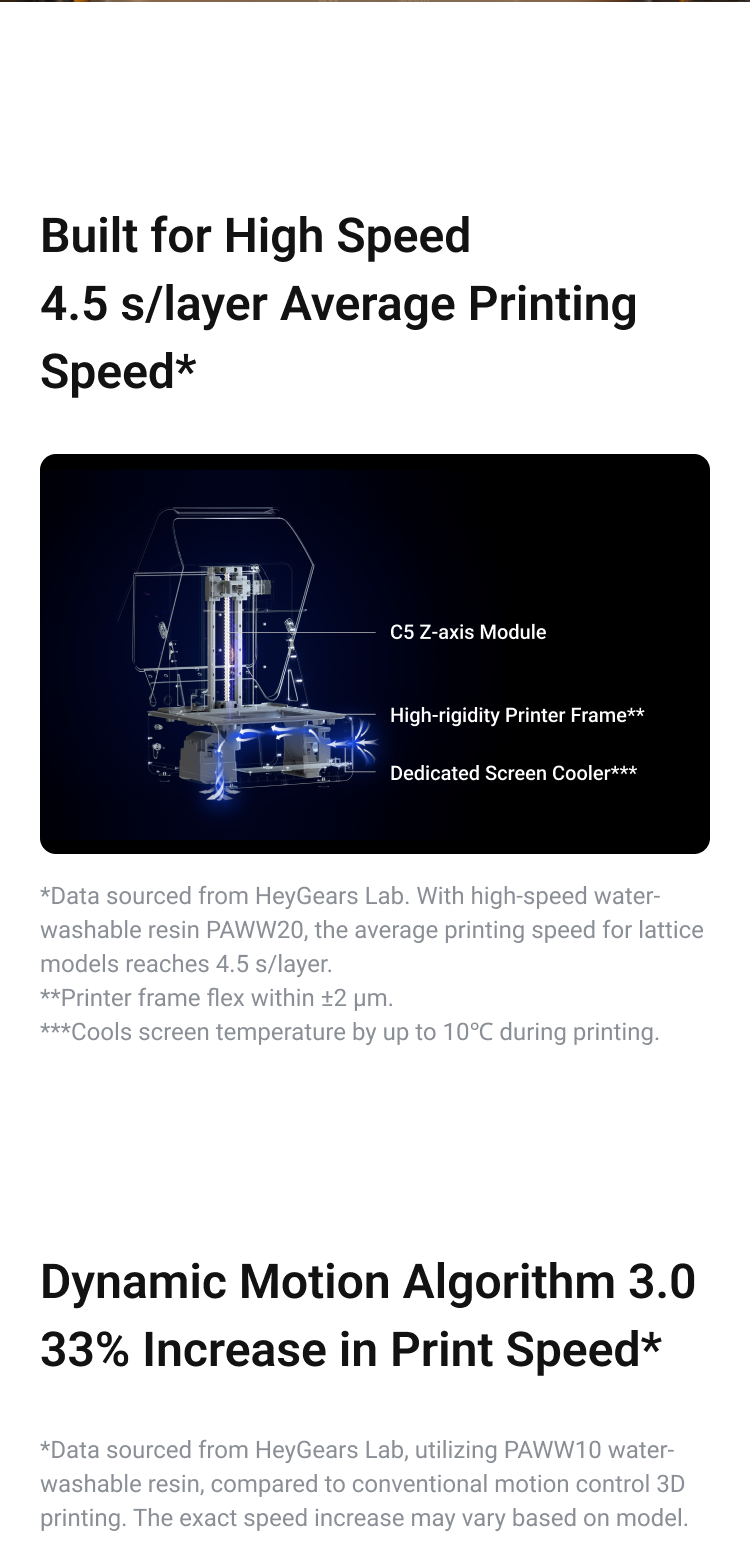

1. Built for High Speed 4.5 s/layer average printing speed*
C5 Z-axis Module, High-rigidity Printer Frame**, Dedicated Screen Cooler***

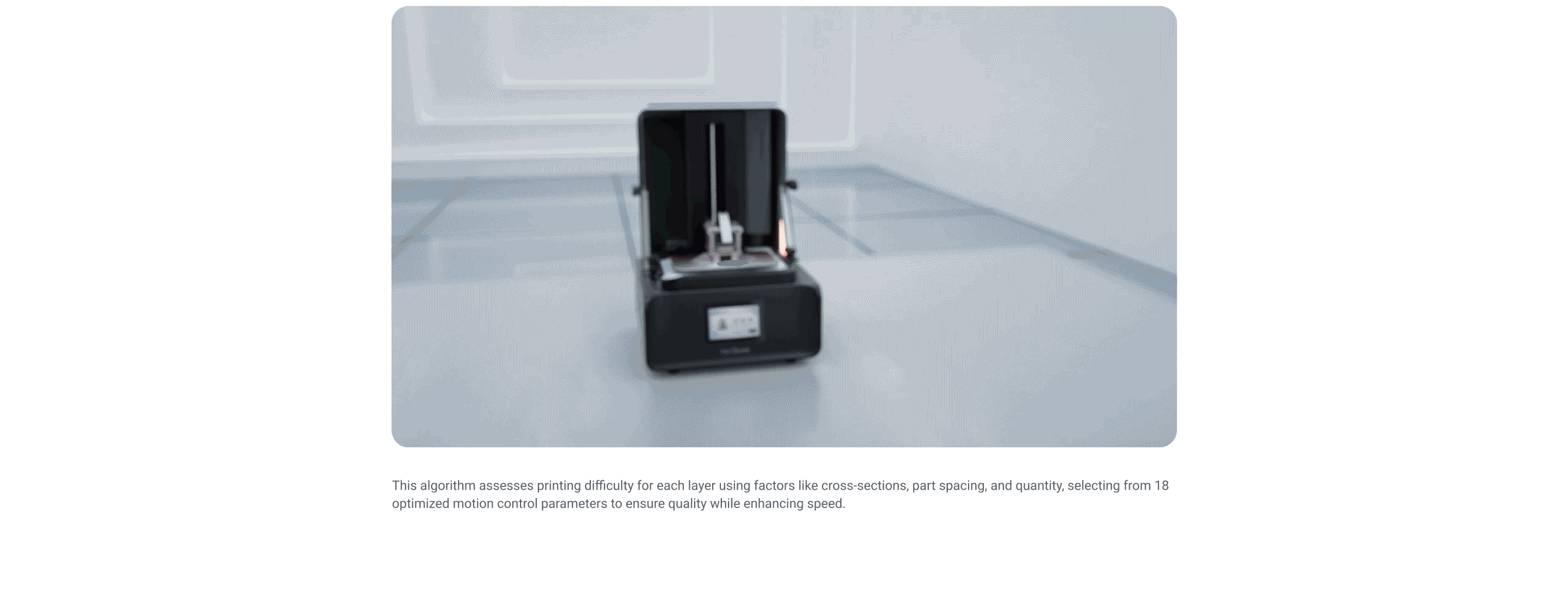

2. Dynamic Motion Algorithm 3.0, 33% Increase in Print Speed*
This algorithm assesses printing difficulty for each layer using factors like cross-sections, part spacing, and quantity, selecting from 18 optimized motion control parameters to ensure quality while enhancing speed.
Utilizing a seven-segment motion control logic per layer, the RS reads real-time force sensor data at 80 times per second, allowing it to adjust motion parameters efficiently, reducing redundant time and preventing printing failures.
VII. Get Printing in Minutes
1. Automatic Pre-processing

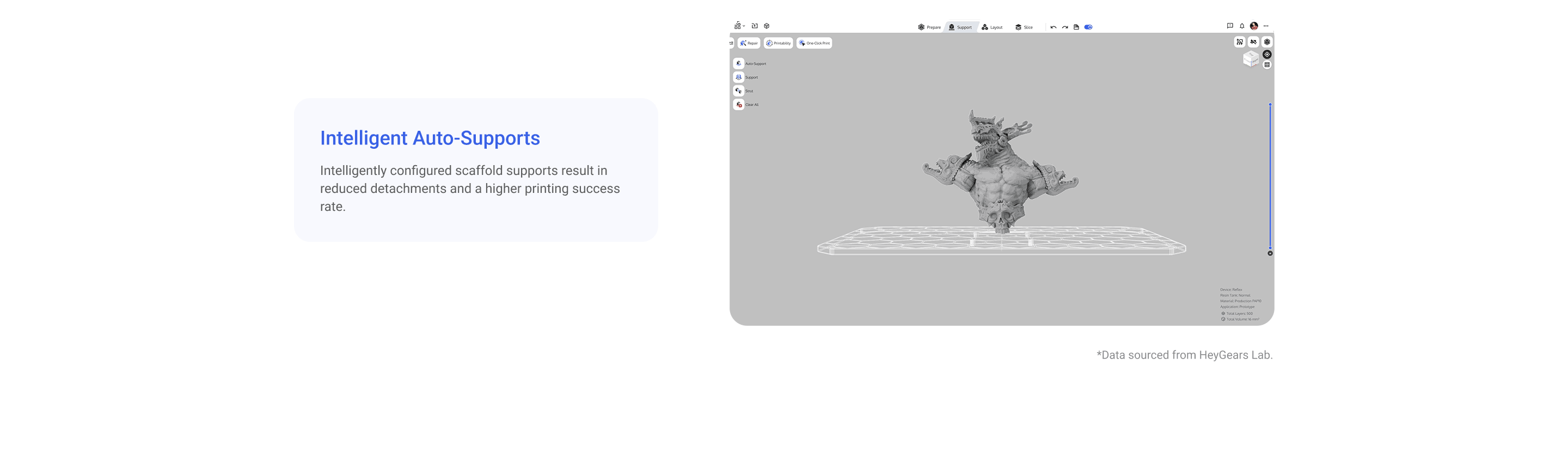

Complete Pre-processing in Just One Minute, Automatic Repair Prevents Failures, Intelligent Auto-Supports
2. Force Value Monitoring System
Residue Detection, Printing Analysis
3. Automated Printing Assistance
Floating Screen Auto Leveling, Automatic Resin Heating, Automatic Resin Refill
