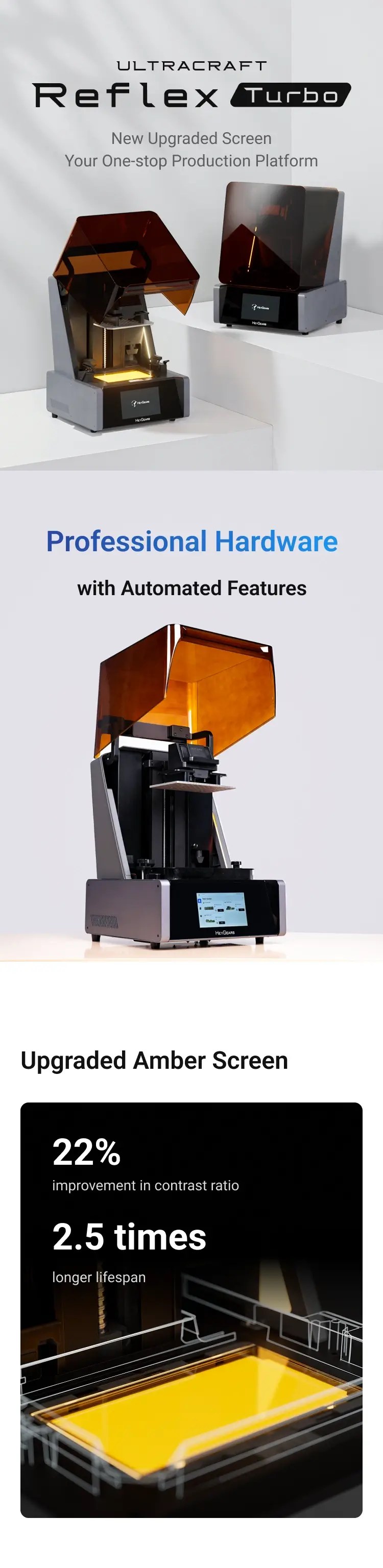

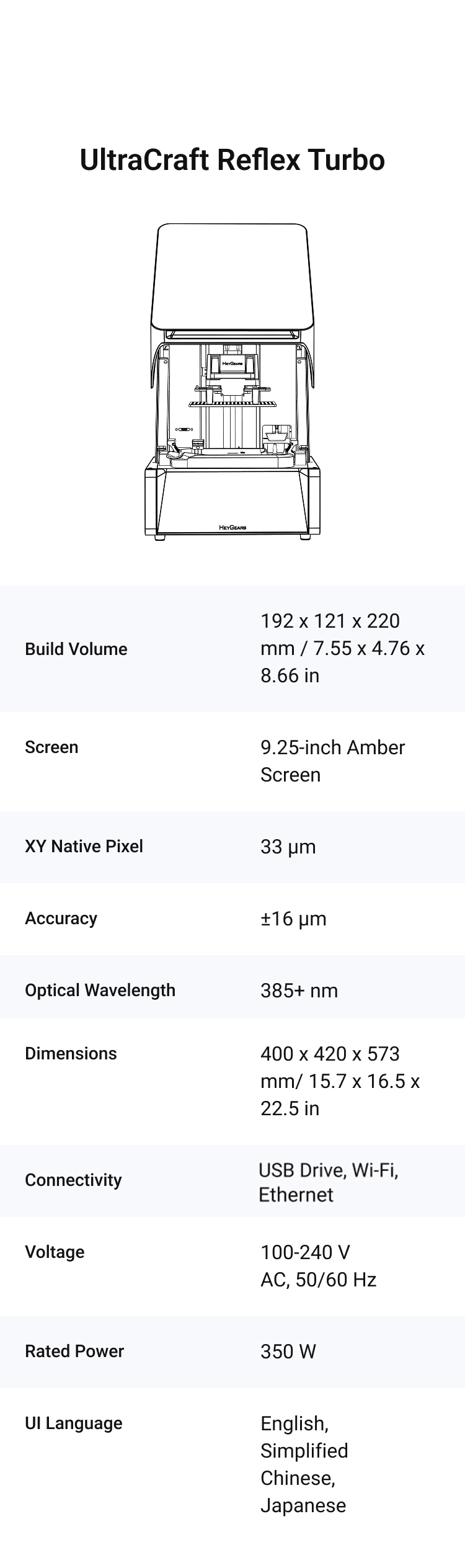

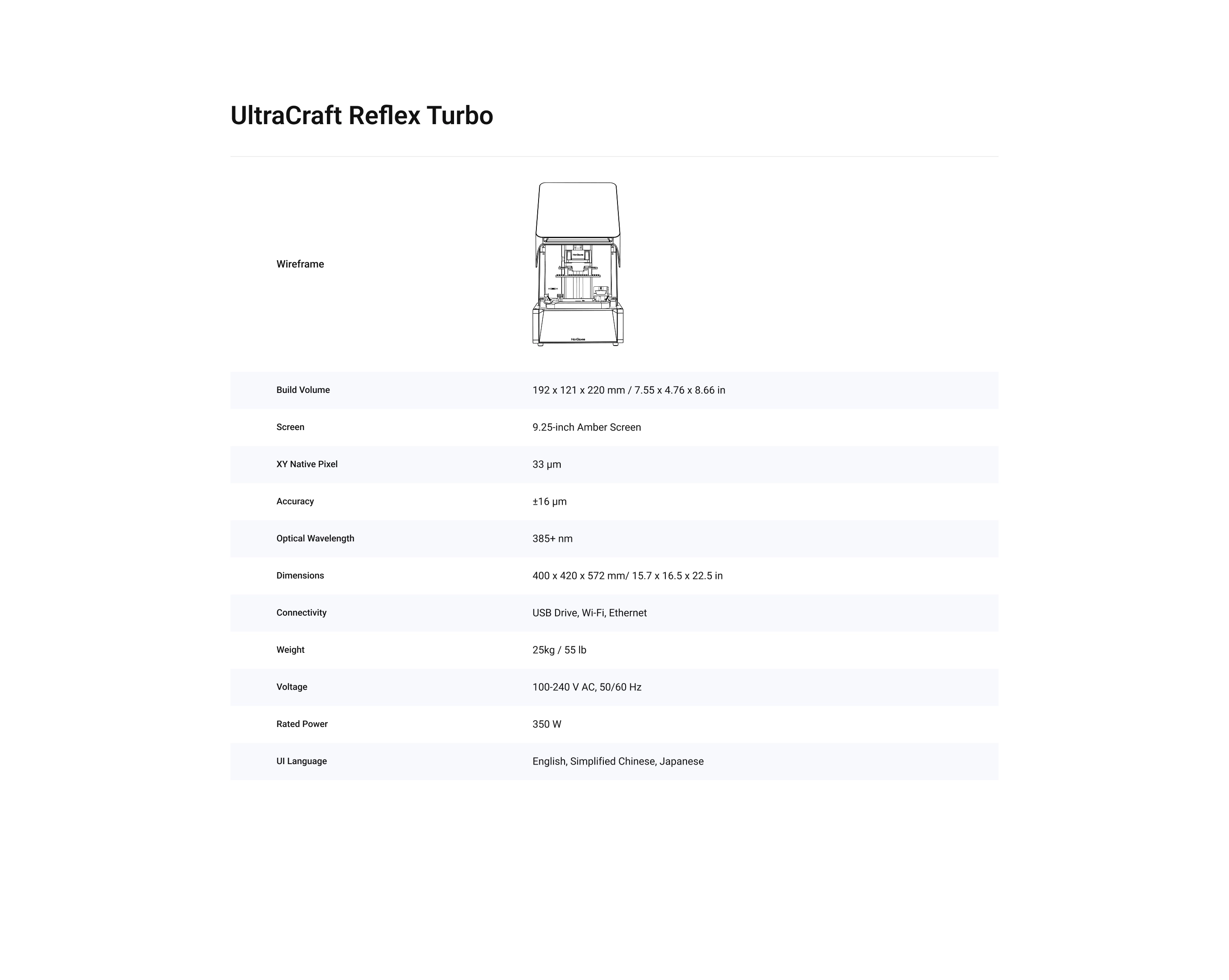

UltraCraft Reflex Turbo

• Professional Hardware
• with Automated Features

I. Upgraded Amber Screen

22% improvement in contrast ratio, 2.5 times longer lifespan

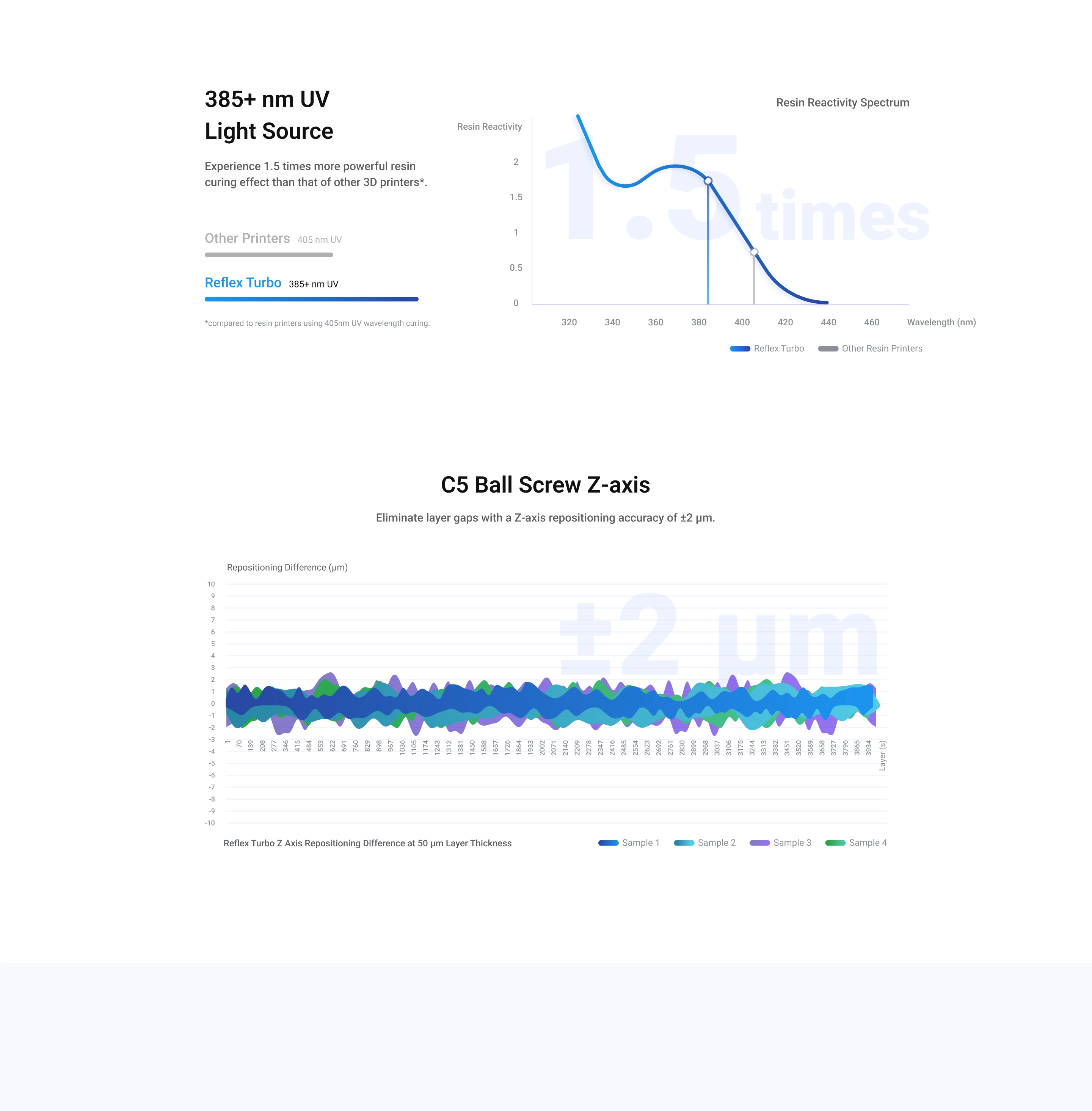

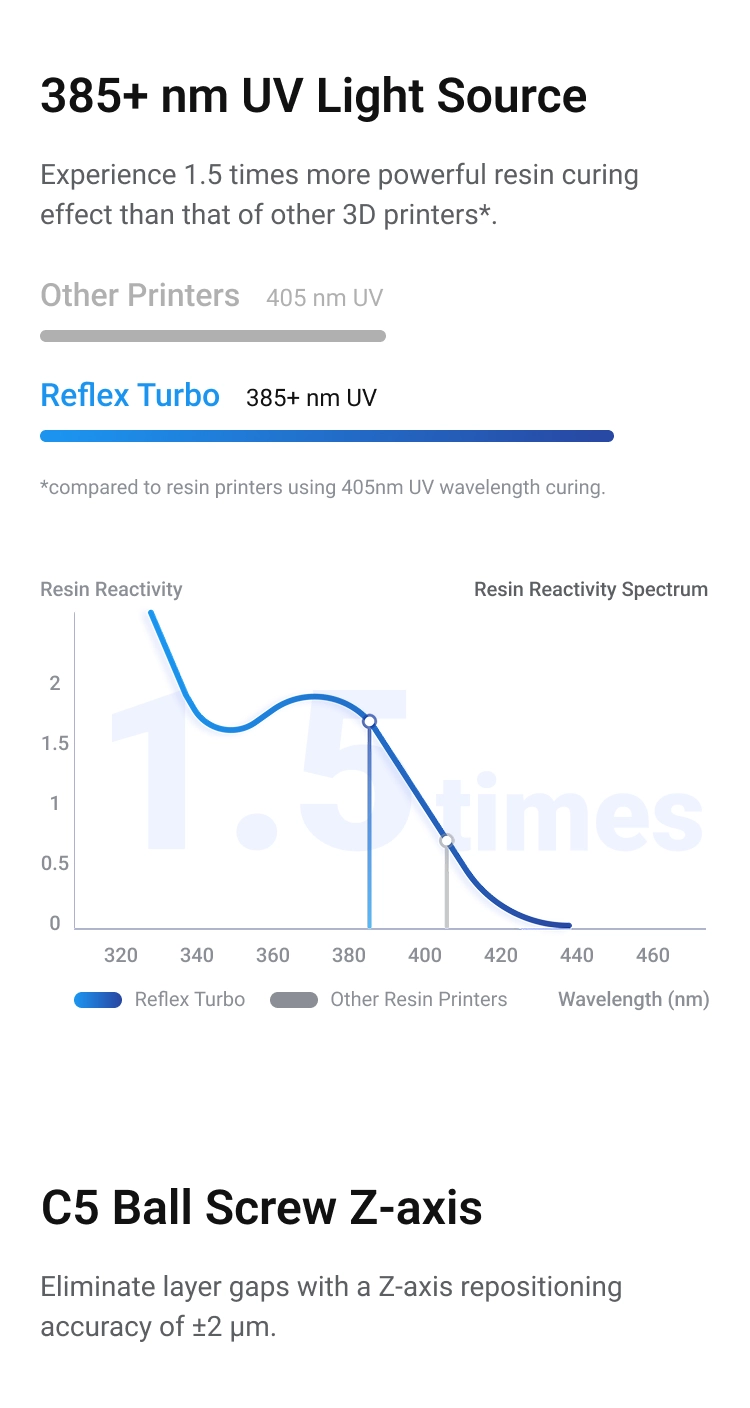

II. 385 nm UV, Light Source

Experience 1.5 times more powerful resin curing effect than that of other 3D printers*.

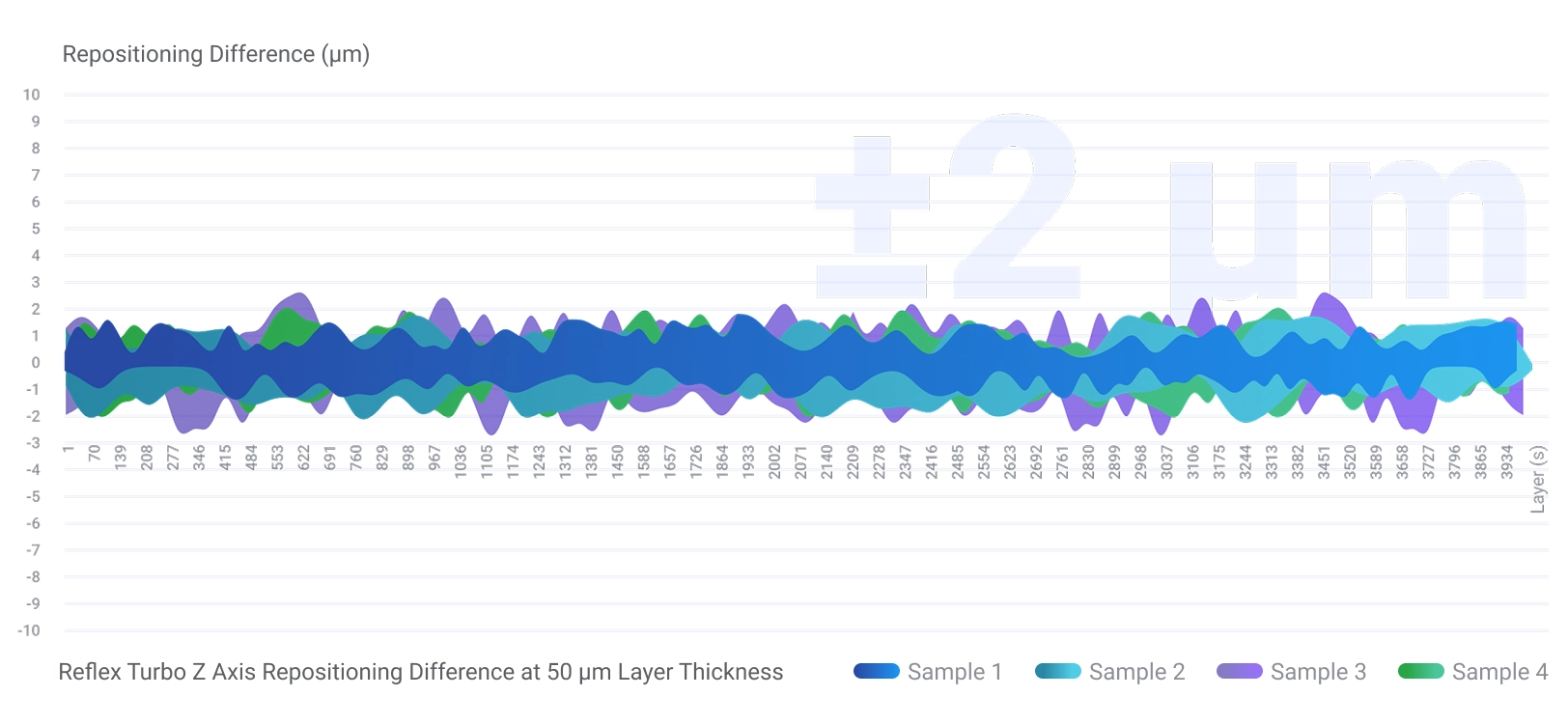

III. C5 Ball Screw Z-axis

Eliminate layer gaps with a Z-axis repositioning accuracy of ±2 μm.

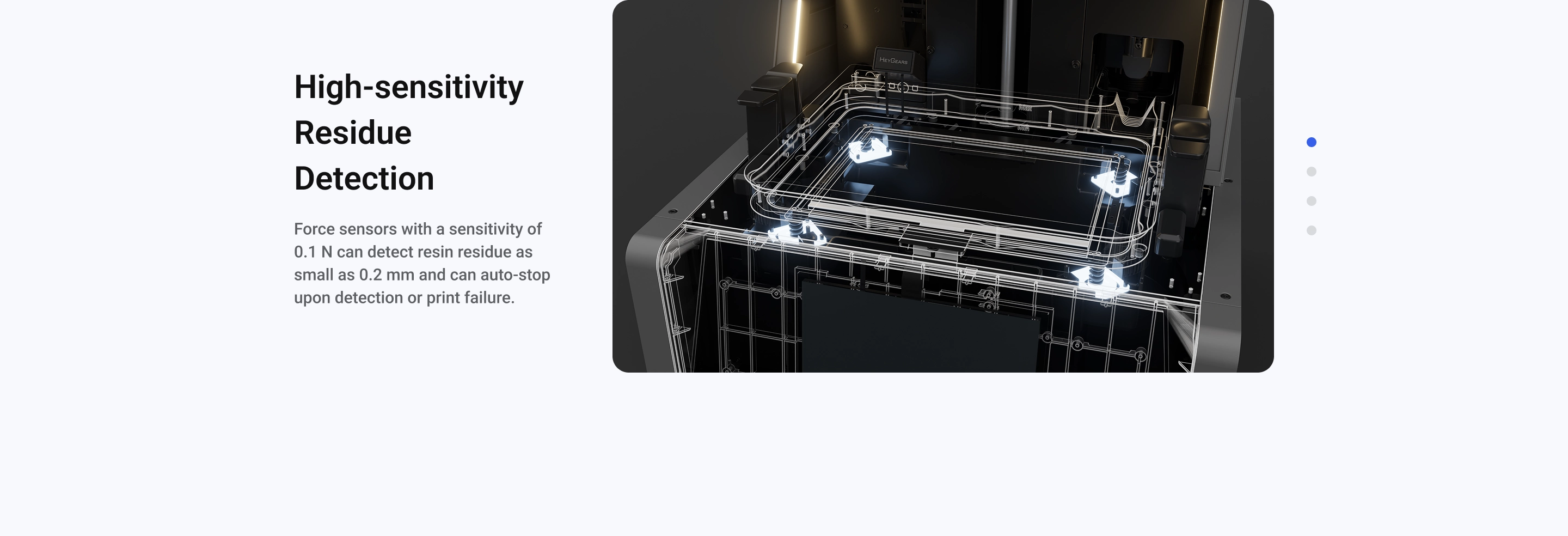

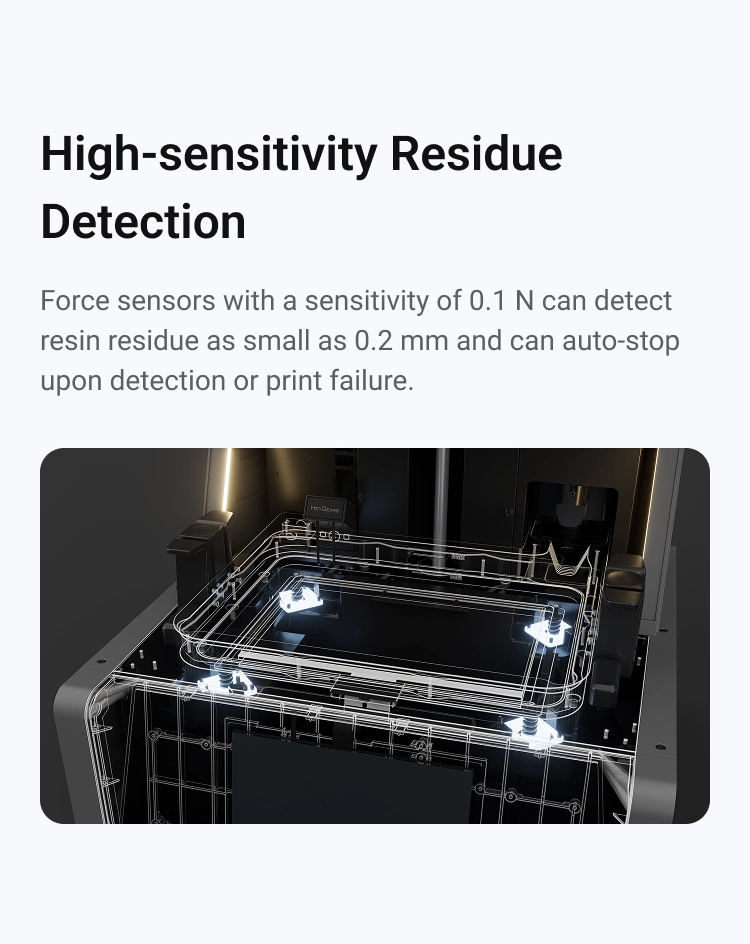

IV. High-sensitivity Residue Detection

Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure.

ReflexTurbo.sections.focMotor.tagline

V. Floating Screen Auto Leveling

A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 μm for automatic leveling.

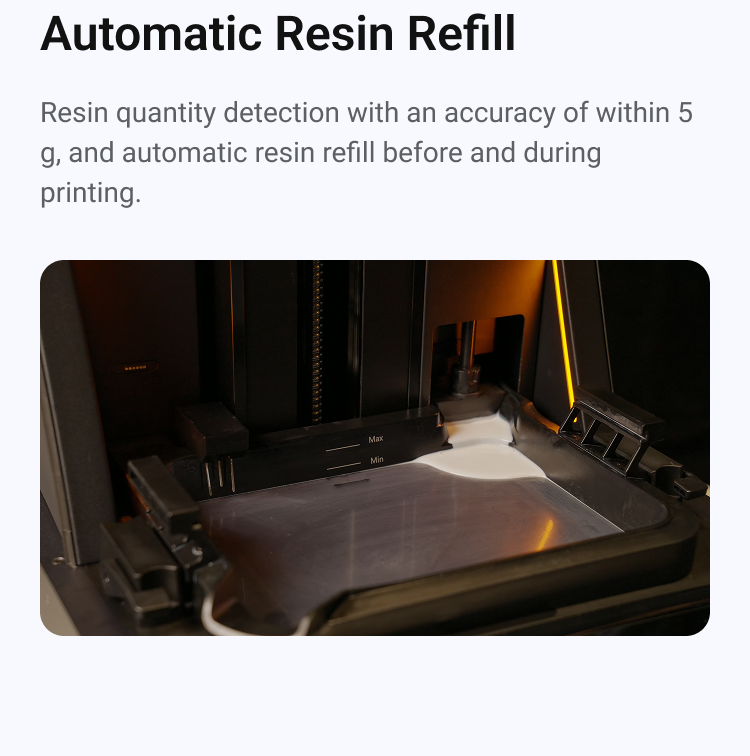

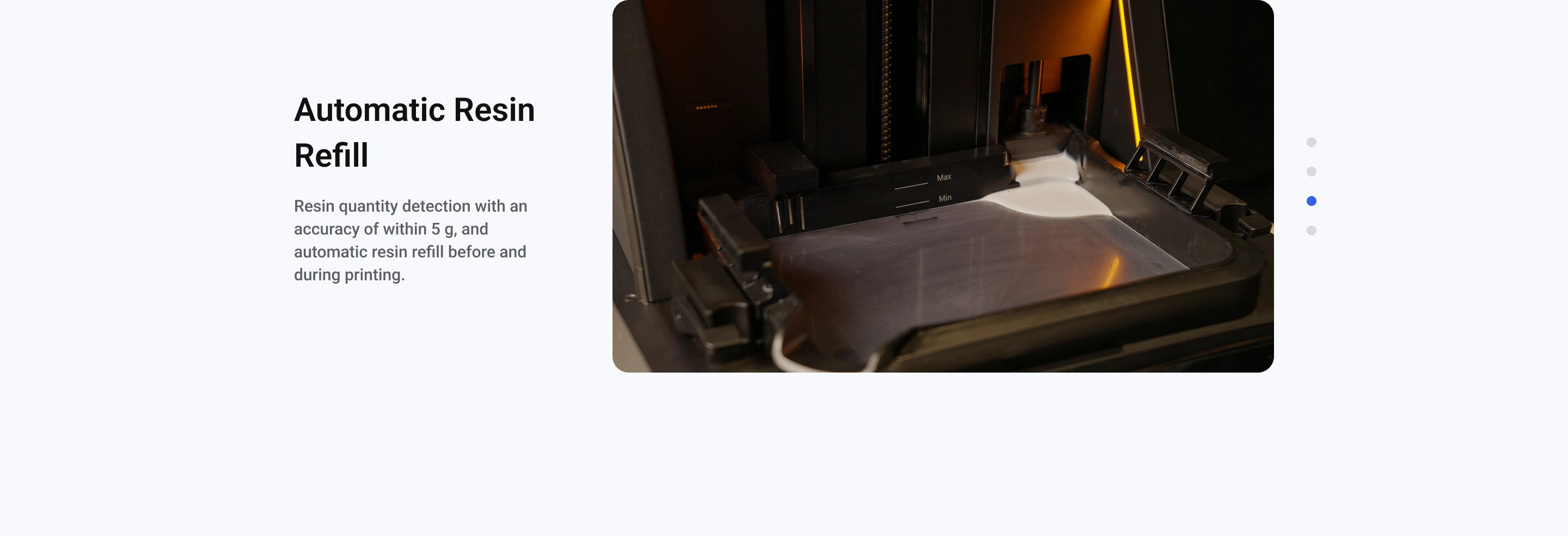

VI. Automatic Resin Refill

Resin quantity detection with an accuracy of within 5 g, and automatic resin refill before and during printing.

VII. Automatic Resin Heating

The heated resin tray elevates resin temperature from 50 F (10°C) to an optimal 73 °F (22 °C) in 20 minutes, while auto heating maintains this temperature throughout the printing process for optimal results.

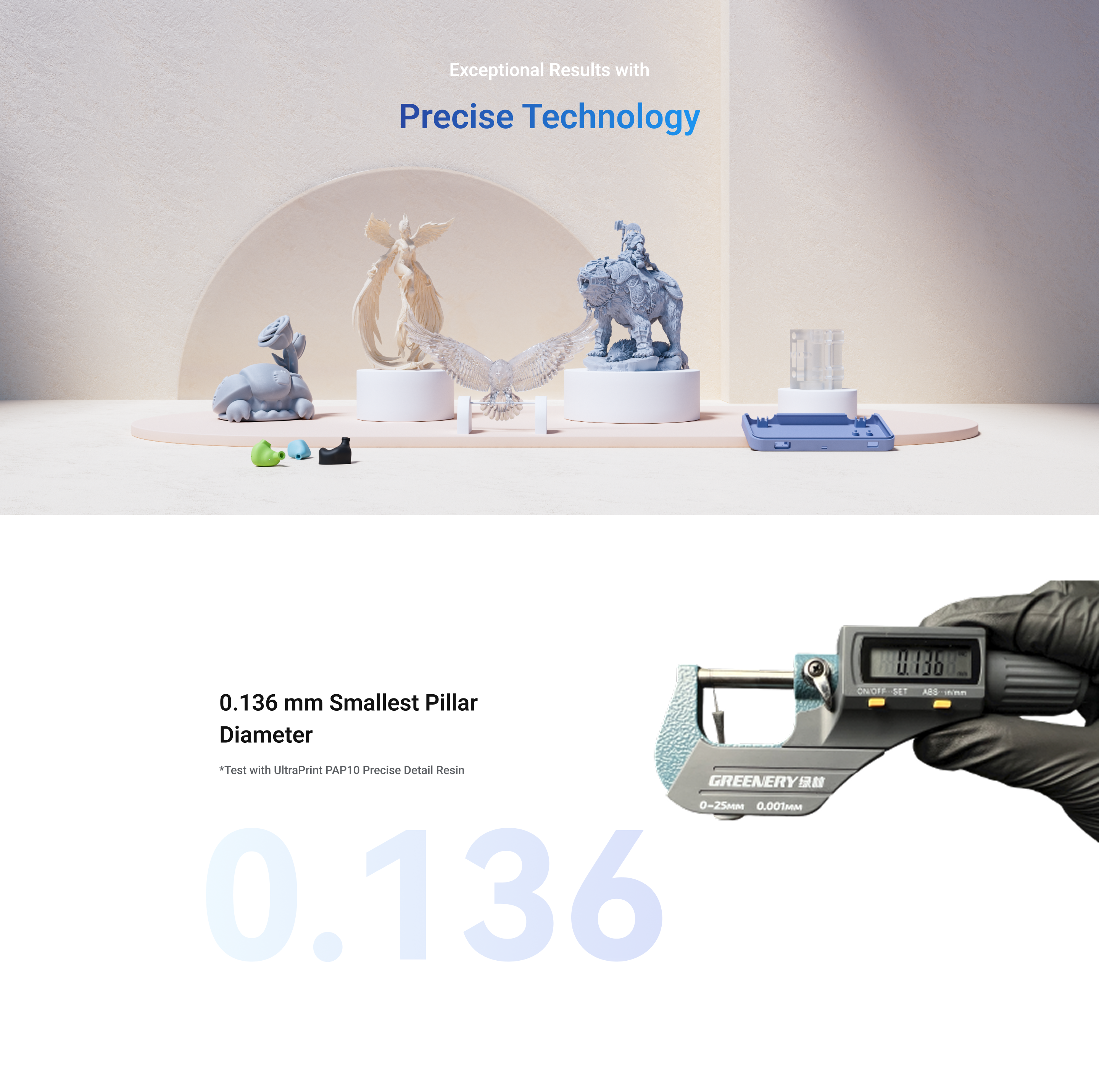

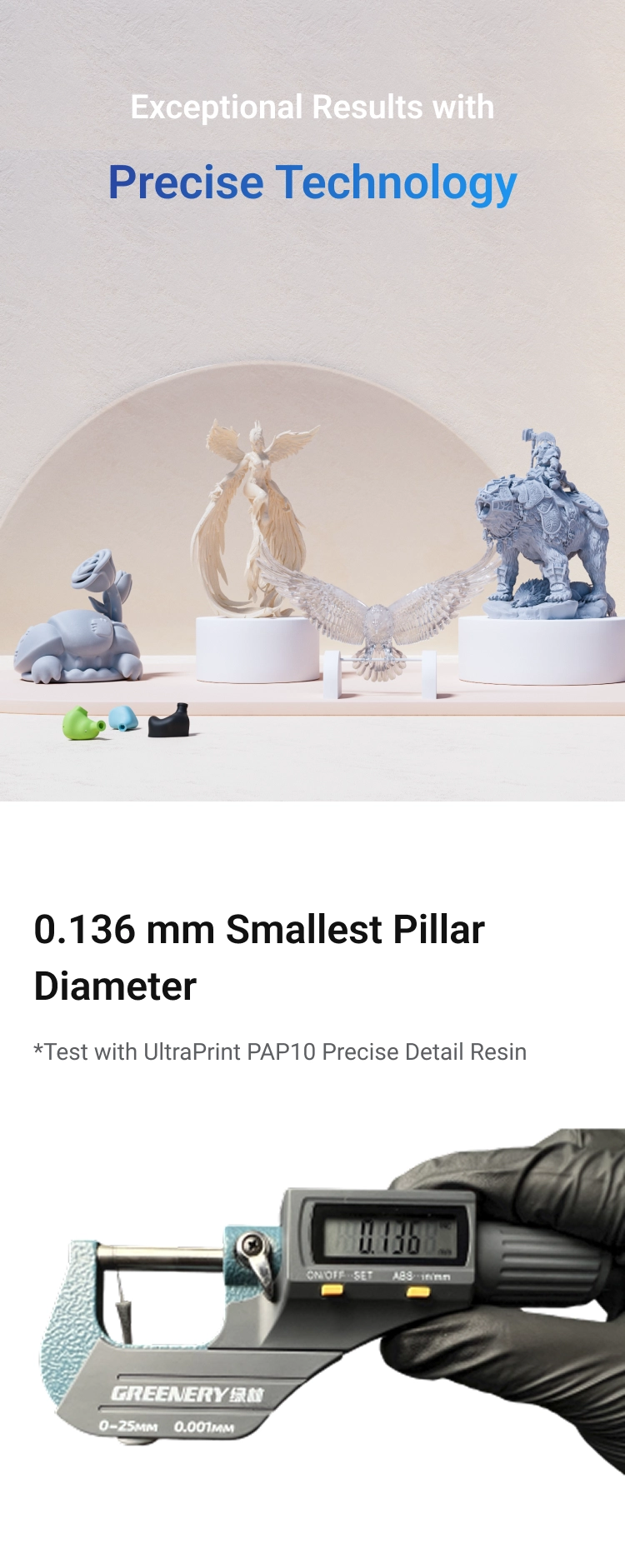

Ⅷ. Exceptional Results with Precise Technology

IX. 0.136 mm Smallest Pillar Diameter

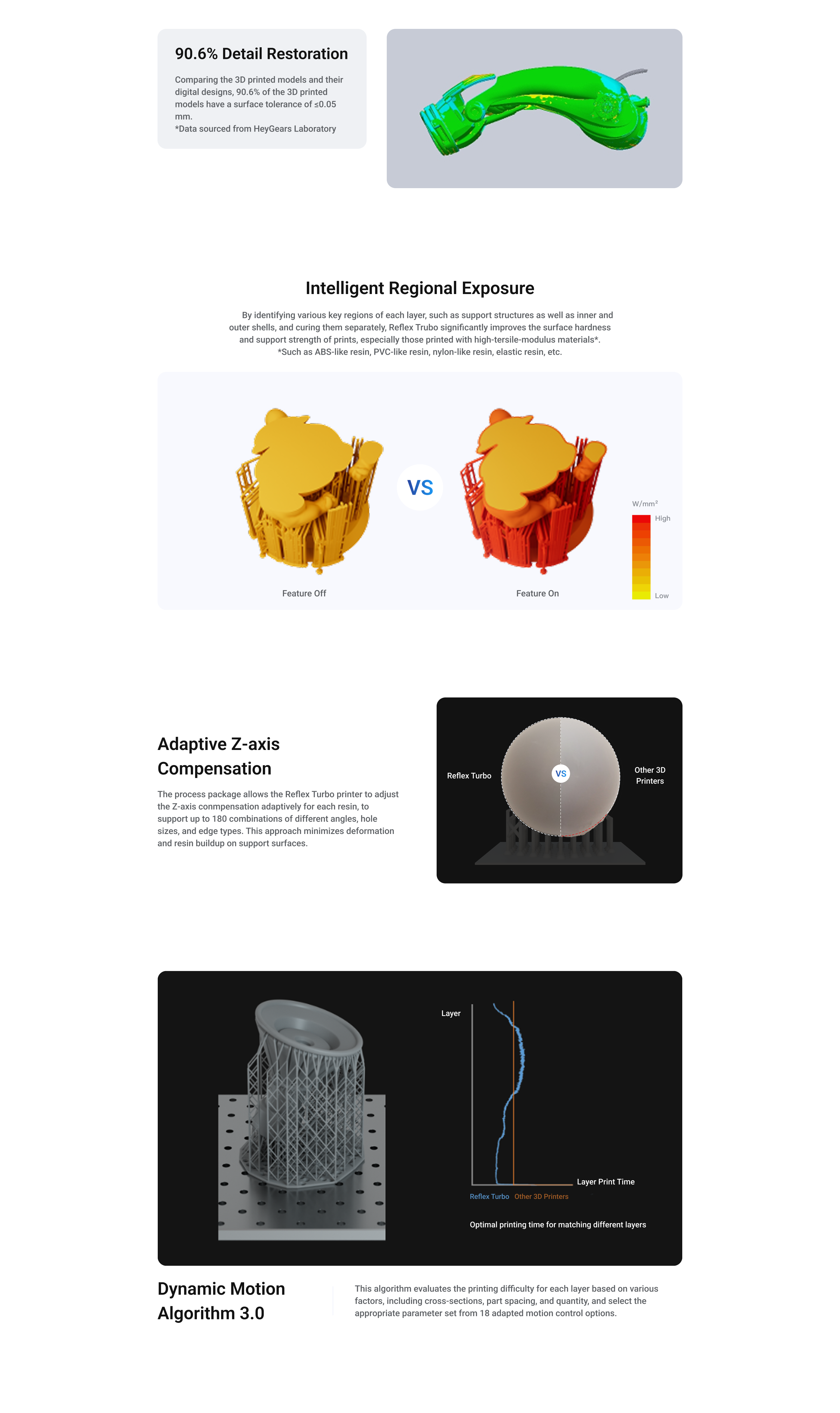

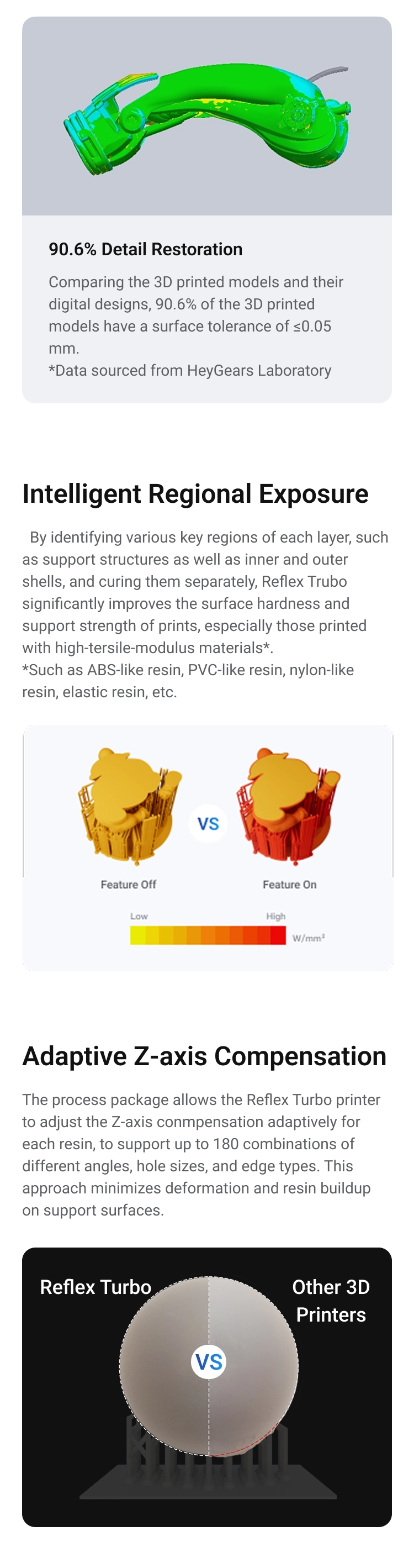

X. Intelligent Regional Exposure

By identifying various key regions of each layer, such as support structures as well as inner and outer shells, and curing them separately, Reflex Trubo significantly innproves the surface hardness and support strength of prints, especially those printed with high-tersile-modulus materials*. *Such as ABS-like resin, PVC-like resin,nylon-like resin, elastic resin, etc

XI. Adaptive Z-axis Compensation

The process package allows the Reflex Turbo printer to adjust the Z-axis conmpensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes, and edge types. This approach minimizes deformation and resin buildup on supporsurfaces.

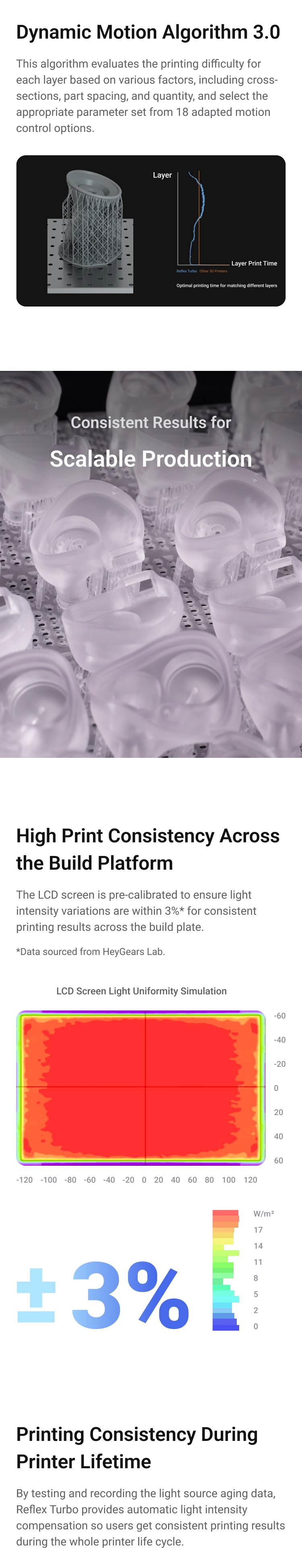

XII. Dynamic Motion Algorithm 3.0

This algorithm evaluates the printing difficulty for each layer based on vinters factors, including cross-sections, part spacing, and quantity, and select the appropriate parameter set from 18 adapted motion control options.

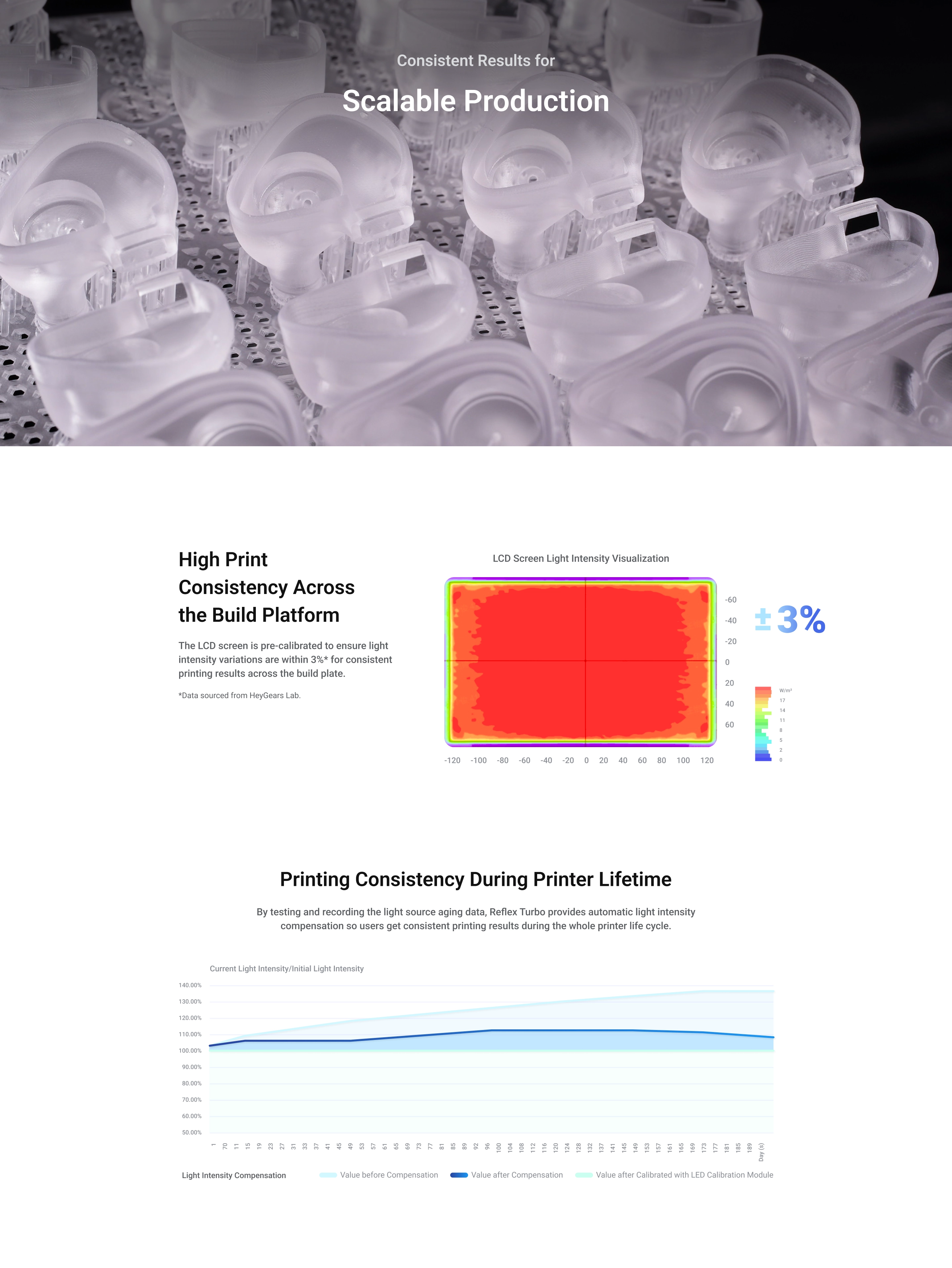

XIII. Consistent Results for Scalable Production

XIV. High Print Consistency Across the Build Platform

The LCD screen is pre-calibrated to ensure light intensity variations are within 3%* for consistent printing results across the build plate.

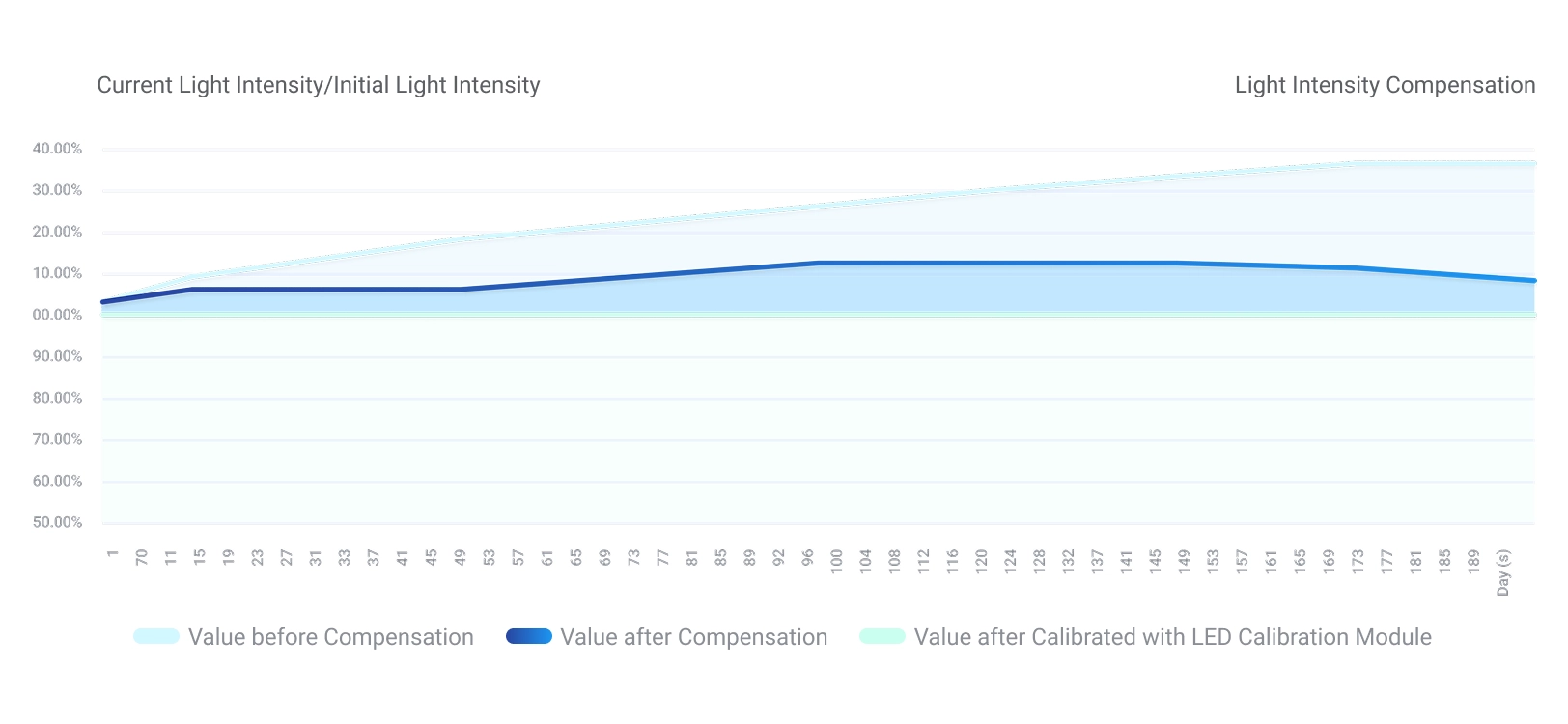

XV. Printing Consistency During Printer Lifetime

By testing and recording the light source aging data, Reflex Turbo providenatic light intensity compensation so users get consistent printing results during the whole printer life cycle.

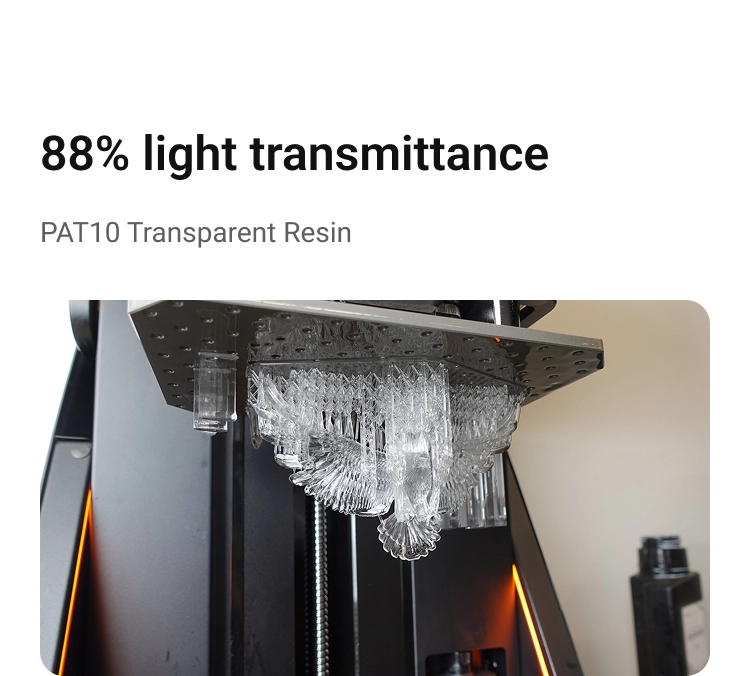

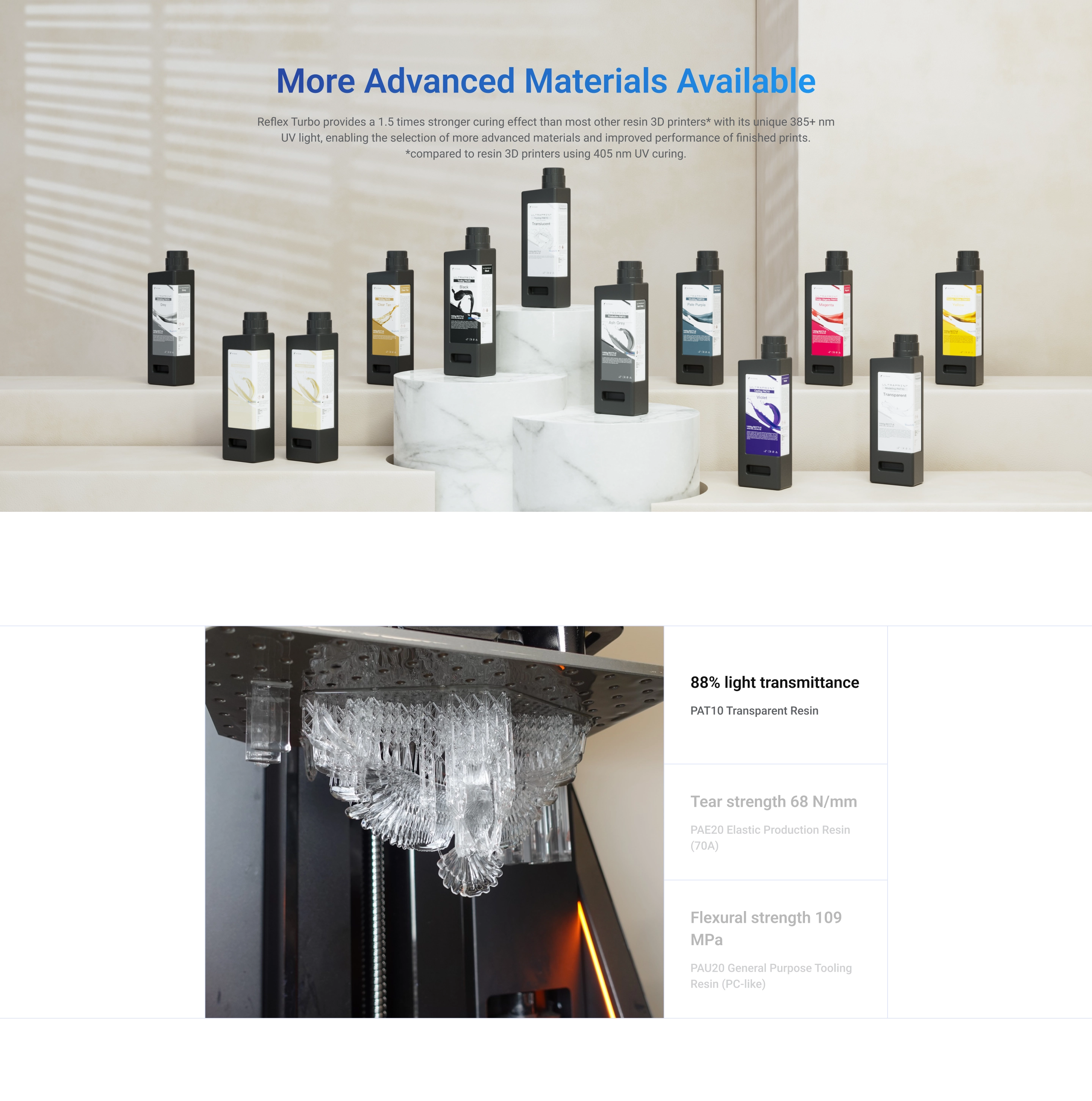

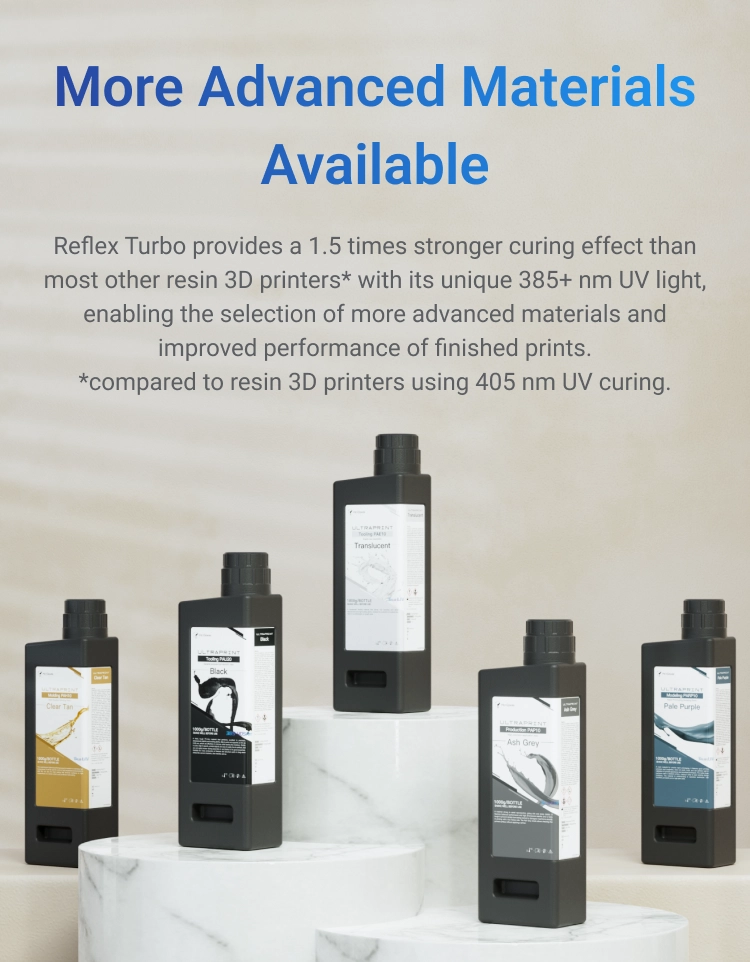

XVI. More Advanced Materials Available

Reflex Turbo provides a 1.5 times stronger curing effect than most other nesin 3D printers with its unique 385nm UV light, enabling the selection of more advanced materials and improved performance of finished prints.
